Description
General part information

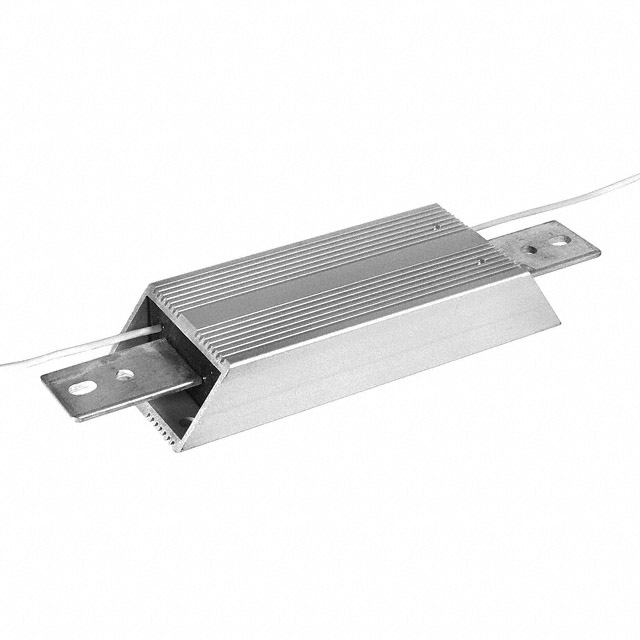

SH2-150R0006DE
600 µOhms ±0.5% 13.5W Metal Clad Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | SH2-150R0006DE |
|---|---|
| Coating | Aluminum |
| Composition | Metal Clad |
| Features | Moisture Resistant, Current Sense |
| Height - Seated (Max) | 1.22 in |
| Housing Type | Aluminum |
| Lead Style | 4-Terminal |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Rectangular Case |
| Power (Watts) | 13.5 W |
| Resistance | 0.6 mOhms |
| Size / Dimension Length | 6.496 in |
| Size / Dimension Width | 2.362 in |
| Temperature Coefficient | 30 ppm/¯C |
| Tolerance | 0.5 % |
