ERM8-060-05.0-L-DV-L-K-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, HEADER, 0.8 MM, 2 ROWS, 120 CONTACTS, SURFACE MOUNT, PHOSPHOR BRONZE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03 ERM8 Datasheet +2

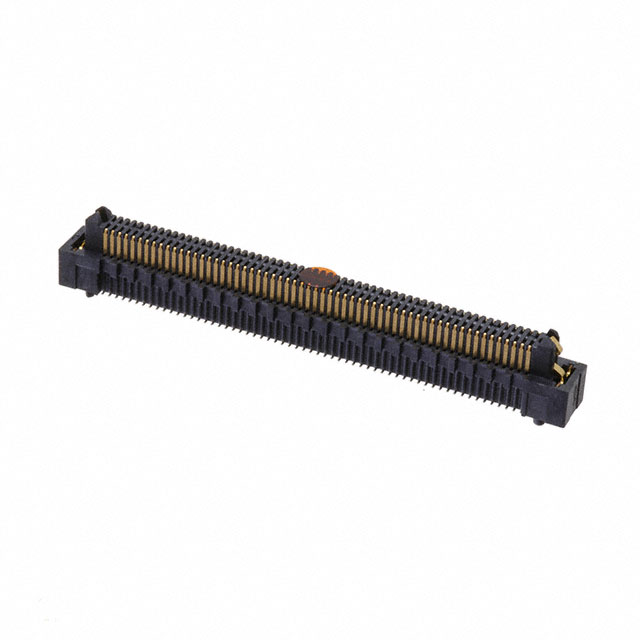

ERM8-060-05.0-L-DV-L-K-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, HEADER, 0.8 MM, 2 ROWS, 120 CONTACTS, SURFACE MOUNT, PHOSPHOR BRONZE

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03 ERM8 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-060-05.0-L-DV-L-K-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Pick and Place, Latches
Height Above Board	8.91 mm
Height Above Board	0.351 in
Mated Stacking Heights	12 mm, 15 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-060 Series

Part	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions	Mated Stacking Heights	Features	Number of Rows
Samtec Inc. ERM8-060-05.0-S-DV-L-K-TR	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	8.91 mm	0.351 in	Gold	0.8 mm	0.031 in	120	10 mm 12 mm 15 mm	Board Guide Latches Pick and Place	2
Samtec Inc. ERM8-060-01-L-D-EM2-DSS-TR	Differential Pair Array Male	Board Edge Straddle Mount	0.25 Ám	10 Áin			Gold	0.8 mm	0.031 in	120		Mating Guide	2
Samtec Inc. ERM8-060-01-S-D-RA-L-K-TR	Header Center Strip Contacts	Surface Mount Right Angle	0.76 Ám	30 Áin	6.25 mm	0.246 in	Gold	0.8 mm	0.031 in	120		Board Guide Latches Mounting Flange Pick and Place	2
Samtec Inc. ERM8-060-01-L-D-EM2-SL-TR	Header Center Strip Contacts	Board Edge Straddle Mount	0.25 Ám	10 Áin			Gold	0.8 mm	0.031 in	120		Latches	2
Samtec Inc. ERM8-060-01-S-D-RA-K-TR	Header Center Strip Contacts	Surface Mount Right Angle	0.76 Ám	30 Áin	6.25 mm	0.246 in	Gold	0.8 mm	0.031 in	120		Board Guide Pick and Place	2
Samtec Inc. ERM8-060-05.0-S-DV-L-TR	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	8.91 mm	0.351 in	Gold	0.8 mm	0.031 in	120	10 mm 12 mm 15 mm	Board Guide Latches	2
Samtec Inc. ERM8-060-05.0-L-DV-EGP-K-TR	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	8.91 mm	0.351 in	Gold	0.8 mm	0.031 in	120	10 mm 12 mm 15 mm	Board Guide Mating Guide Pick and Place	2
Samtec Inc. ERM8-060-01-S-D-RA-L-TR	Header Center Strip Contacts	Surface Mount Right Angle	0.76 Ám	30 Áin	6.25 mm	0.246 in	Gold	0.8 mm	0.031 in	120		Board Guide Latches Mounting Flange	2
Samtec Inc. ERM8-060-05.0-S-DV-EGP-TR	Header Center Strip Contacts	Surface Mount	0.76 Ám	30 Áin	8.91 mm	0.351 in	Gold	0.8 mm	0.031 in	120	10 mm 12 mm 15 mm	Board Guide Mating Guide	2
Samtec Inc. ERM8-060-05.0-L-DV-L-K-TR	Header Center Strip Contacts	Surface Mount	0.25 Ám	10 Áin	8.91 mm	0.351 in	Gold	0.8 mm	0.031 in	120	10 mm 12 mm 15 mm	Board Guide Latches Pick and Place	2
