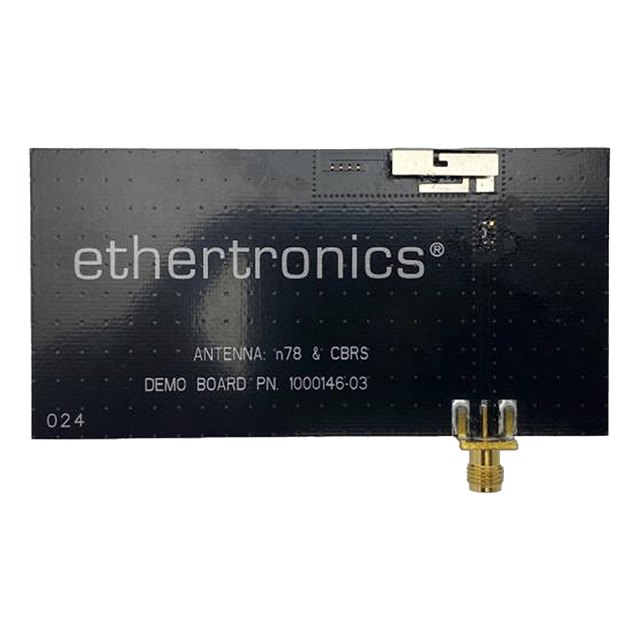

1000146-03

Active

KYOCERA AVX

EVAL BOARD FOR 1000146

Search across all available documentation for this part.

Active

KYOCERA AVX

EVAL BOARD FOR 1000146

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1000146-03	1000146 Series

Antenna Type	-	Stamped Metal
Applications	-	WLAN, Bluetooth, Wi-Fi, Zigbee™
For Use With/Related Products	1000146	1000146
Frequency (Center/Band)	-	2.4 - 5.8 GHz
Frequency [Max]	3.8 GHz	3.8 GHz
Frequency [Min]	3.3 GHz	3.3 GHz
Frequency Group	-	4 GHz
Frequency Group	-	2 GHz
Frequency Group	-	3 GHz
Frequency Range	-	2.49 - 5.9 GHz
Frequency Range	-	2.39 - 5.7 GHz
Gain	-	2.5 - 3.5 dBi
Height (Max)	-	0.169 in
Height (Max)	-	4.3 mm
Mounting Type	-	Surface Mount
Number of Bands	-	4
RF Family/Standard	-	WiFi, Bluetooth, 802.15.4
Supplied Contents	Board(s)	Board(s)
Termination	-	Solder
Type	Antenna	Antenna
VSWR	-	1.3 - 1.8

EVAL BOARD FOR 1000146

Part	Supplied Contents	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Type	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Gain	Applications	VSWR	RF Family/Standard	Mounting Type	Number of Bands	Termination
KYOCERA AVX 1000146-03	Board(s)	3.8 GHz	3.3 GHz	1000146	Antenna
KYOCERA AVX 1000146						Stamped Metal	2.49 GHz, 5.35 GHz, 5.9 GHz	2.39 GHz, 4.9 GHz, 5.7 GHz	2.4 GHz, 4.9 GHz, 5.2 GHz, 5.8 GHz	0.169 in	4.3 mm	4 GHz	2 GHz	3 GHz	2.5 dBi, 3.5 dBi	Bluetooth, Wi-Fi, WLAN, Zigbee™	1.3, 1.5, 1.6, 1.8	802.15.4, Bluetooth, WiFi	Surface Mount	4	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.66

General part information

1000146 - Antenna 3.3GHz ~ 3.8GHz Evaluation Board

Technical documentation and resources
