0066-3-17-15-30-14-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

0066-3-17-15-30-14-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.50
		10	$ 1.31
		25	$ 1.25
		50	$ 1.22
		100	$ 1.17
		250	$ 1.06
		500	$ 0.97
		1000	$ 0.83
		3000	$ 0.78

Description

General part information

0066-3 Series

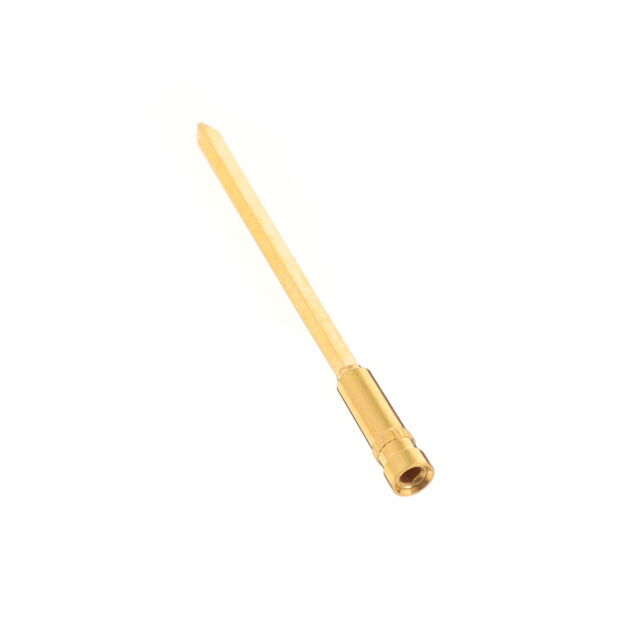

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Wire Wrap Press-Fit

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0066-3-17-15-30-14-02-0	0066-3 Series

Accepts Pin Diameter [Max]	0.025 "	0.025 "
Accepts Pin Diameter [Max]	0.64 mm	0.64 mm
Accepts Pin Diameter [Min]	0.015 "	0.015 "
Accepts Pin Diameter [Min]	0.38 mm	0.38 mm
Contact Finish	Gold	Tin, Gold
Contact Finish Thickness	10 Áin	10 - 100 µin
Contact Finish Thickness	0.25 Ám	0.25 - 2.54 µm
Contact Material	Beryllium Copper	Beryllium Copper
Flange Diameter [diameter]	0.062 in	0.062 in
Flange Diameter [diameter]	1.57 mm	1.57 mm
Length - Overall [x]	17.78 mm	17.78 mm
Length - Overall [x]	0.7 in	0.7 in
Mounting Hole Diameter [diameter]	0.057 "	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm	1.45 mm
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth	0.162 in	0.162 in
Socket Depth	4.12 mm	4.12 mm
Tail Diameter	0.64 mm	0.64 mm
Tail Diameter	0.025 in	0.025 in
Tail Type	Wire Wrap	Wire Wrap
Termination	Press-Fit	Press-Fit

0066-3 Series

CONN PIN RCPT

Part	Tail Diameter	Tail Diameter	Contact Finish	Contact Material	Tail Type	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Termination	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0066-3-17-80-30-84-02-0	0.64 mm	0.025 in	Tin	Beryllium Copper	Wire Wrap	0.162 in	4.12 mm	0.062 in	1.57 mm	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	Press-Fit	2.54 µm	100 µin	17.78 mm	0.7 in	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0066-3-17-01-30-27-02-0	0.64 mm	0.025 in	Gold	Beryllium Copper	Wire Wrap	0.162 in	4.12 mm	0.062 in	1.57 mm	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	Press-Fit	0.76 Ám	30 Áin	17.78 mm	0.7 in	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0066-3-17-15-30-14-02-0	0.64 mm	0.025 in	Gold	Beryllium Copper	Wire Wrap	0.162 in	4.12 mm	0.062 in	1.57 mm	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	Press-Fit	0.25 Ám	10 Áin	17.78 mm	0.7 in	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0066-3-17-80-30-14-02-0	0.64 mm	0.025 in	Gold	Beryllium Copper	Wire Wrap	0.162 in	4.12 mm	0.062 in	1.57 mm	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	Press-Fit	0.25 Ám	10 Áin	17.78 mm	0.7 in	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0066-3-17-15-30-27-02-0	0.64 mm	0.025 in	Gold	Beryllium Copper	Wire Wrap	0.162 in	4.12 mm	0.062 in	1.57 mm	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	Press-Fit	0.76 Ám	30 Áin	17.78 mm	0.7 in	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0066-3-17-80-30-27-02-0	0.64 mm	0.025 in	Gold	Beryllium Copper	Wire Wrap	0.162 in	4.12 mm	0.062 in	1.57 mm	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	Press-Fit	0.76 Ám	30 Áin	17.78 mm	0.7 in	0.057 "	1.45 mm
Mill-Max Manufacturing Corp. 0066-3-17-01-30-14-02-0	0.64 mm	0.025 in	Gold	Beryllium Copper	Wire Wrap	0.162 in	4.12 mm	0.062 in	1.57 mm	-55 °C	125 °C	0.025 "	0.64 mm	0.015 "	0.38 mm	Press-Fit	0.25 Ám	10 Áin	17.78 mm	0.7 in	0.057 "	1.45 mm
