Z00607MA,412

Active

NXP USA Inc.

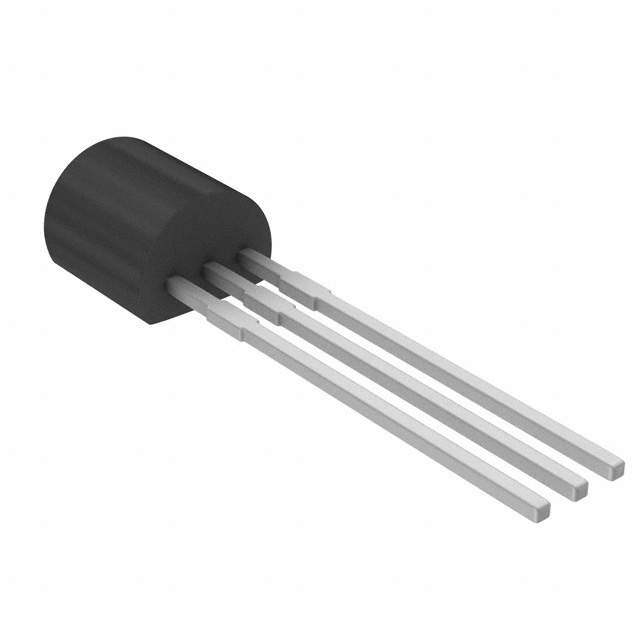

TRIAC SENS GATE 600V 0.8A TO92-3

Search across all available documentation for this part.

Active

NXP USA Inc.

TRIAC SENS GATE 600V 0.8A TO92-3

Technical Specifications

Parameters and characteristics for this part

Specification	Z00607MA,412

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	5 mA
Current - Hold (Ih) (Max) [Max]	10 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	10 A, 9 A
Current - On State (It (RMS)) (Max) [Max]	800 mA
Mounting Type	Through Hole
Operating Temperature	125 ¯C
Package / Case	TO-226-3, TO-92-3
Supplier Device Package	TO-92-3
Triac Type	Logic - Sensitive Gate
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	600 V

TRIAC SENS GATE 600V 0.8A TO92-3

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Operating Temperature	Configuration	Current - On State (It (RMS)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Supplier Device Package	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Mounting Type	Triac Type	Package / Case
NXP USA Inc. Z00607MA,412	2 V	9 A, 10 A	125 ¯C	Single	800 mA	10 mA	TO-92-3	5 mA	600 V	Through Hole	Logic - Sensitive Gate	TO-226-3, TO-92-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TRIAC Logic - Sensitive Gate 600 V 800 mA Through Hole TO-92-3
