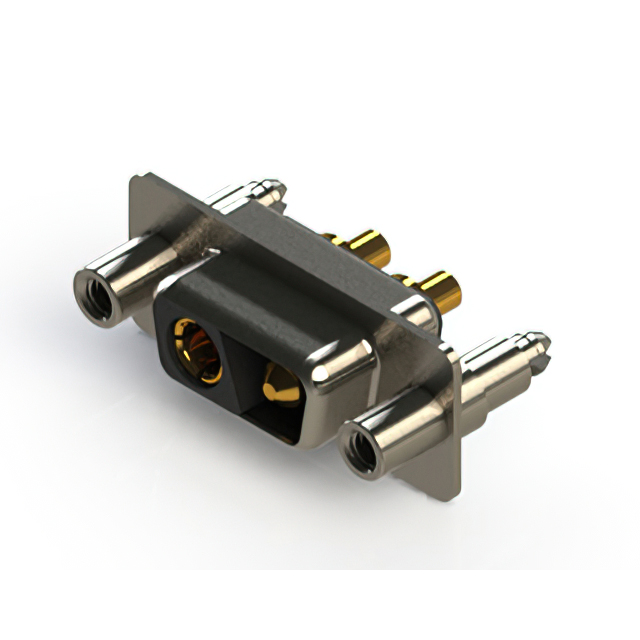

628-2WK2224-2N6
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DE-2WK2, RECEPTACLE, 2 CONTACTS, 2 POWER, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
628-2WK2224-2N6
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DE-2WK2, RECEPTACLE, 2 CONTACTS, 2 POWER, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-2WK2224-2N6 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Female Sockets, Male Pins, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 20 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Board Lock |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2WK2, 1 (DE, E), 2V2, 2W2C, 2W2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
628-2WK Series
...
| Part | Contact Finish Thickness | Flange Feature | Mounting Type | Voltage Rating | Shell Size, Connector Layout | Number of Rows | Contact Material | Current Rating (Amps) | Dielectric Material | Connector Type | Features | Contact Type | Shell Material, Finish | Connector Style | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Color | Material Flammability Rating | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [custom] | Flange Feature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Flash | 4-40 | Through Hole | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Copper Alloy | 20 A | Polyester Thermoplastic | Female Sockets Male Pins Receptacle | Board Lock Shielded | Signal and Power | Nickel Plated Steel | Combo D-Sub | Solder | -55 °C | 125 °C | Black | UL94 V-0 | Gold | 2 | ||||
EDAC Inc. | Through Hole | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Copper Alloy | Polyester Thermoplastic | Female Sockets Male Pins Receptacle | Shielded | Coax Signal | Combo D-Sub | Solder | -55 °C | 125 °C | Black | UL94 V-0 | Gold | 2 | 0.76 Ám | 30 Áin | M3 | M3 | ||||
EDAC Inc. | 4-40 Board Side | Through Hole | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Copper Alloy | 10 A | Polyester Thermoplastic | Female Sockets Male Pins Receptacle | Board Lock Shielded | Signal and Power | Nickel Plated Steel | Combo D-Sub | Solder | -55 °C | 125 °C | Black | UL94 V-0 | Gold | 2 | 0.76 Ám | 30 Áin | |||
EDAC Inc. | Flash | Housing/Shell (Unthreaded) | Through Hole | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Copper Alloy | 20 A | Polyester Thermoplastic | Female Sockets Male Pins Receptacle | Shielded | Signal and Power | Nickel Plated Steel | Combo D-Sub | Solder | -55 °C | 125 °C | Black | UL94 V-0 | Gold | 2 | ||||
EDAC Inc. | Flash | 4-40 Board Side | Through Hole | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Copper Alloy | Polyester Thermoplastic | Female Sockets Male Pins Receptacle | Shielded | Coax Signal | Nickel Plated Steel | Combo D-Sub | Solder | -55 °C | 125 °C | Black | UL94 V-0 | Gold | 2 | |||||
EDAC Inc. | M3 | Through Hole | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Copper Alloy | Polyester Thermoplastic | Female Sockets Male Pins Receptacle | Board Lock Shielded | Coax Signal | Combo D-Sub | Solder | -55 °C | 125 °C | Black | UL94 V-0 | Gold | 2 | 0.76 Ám | 30 Áin | |||||
EDAC Inc. | 4-40 | Through Hole | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Copper Alloy | Polyester Thermoplastic | Female Sockets Male Pins Receptacle | Board Lock Shielded | Coax Signal | Nickel Plated Steel | Combo D-Sub | Solder | -55 °C | 125 °C | Black | UL94 V-0 | Gold | 2 | 0.76 Ám | 30 Áin | ||||
EDAC Inc. | Flash | Board Side (M3) | Through Hole | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Copper Alloy | 20 A | Polyester Thermoplastic | Female Sockets Male Pins Receptacle | Board Lock Shielded | Signal and Power | Nickel Plated Steel | Combo D-Sub | Solder | -55 °C | 125 °C | Black | UL94 V-0 | Gold | 2 | ||||
EDAC Inc. | Housing/Shell (Unthreaded) | Through Hole | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Copper Alloy | Polyester Thermoplastic | Female Sockets Male Pins Receptacle | Shielded | Coax Signal | Nickel Plated Steel | Combo D-Sub | Solder | -55 °C | 125 °C | Black | UL94 V-0 | Gold | 2 | 0.76 Ám | 30 Áin | ||||
EDAC Inc. | Flash | 4-40 | Through Hole | 125 VDC | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 2 | Copper Alloy | Polyester Thermoplastic | Female Sockets Male Pins Receptacle | Board Lock Shielded | Coax Signal | Combo D-Sub | Solder | -55 °C | 125 °C | Black | UL94 V-0 | Gold | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
628-2WK Series
2 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
