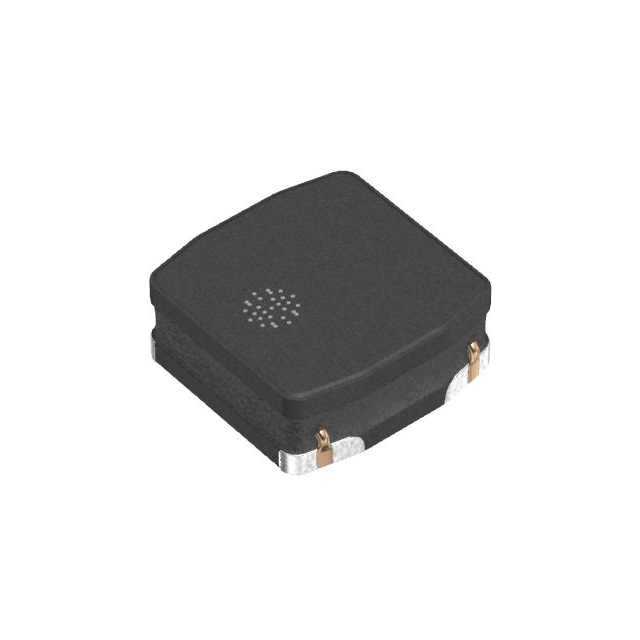

VLS3012CX-680M-1
ActiveTDK Corporation
FIXED IND 68UH 430MA 2.362OHM SM
VLS3012CX-680M-1
ActiveTDK Corporation
FIXED IND 68UH 430MA 2.362OHM SM
Description
General part information
VLS3012CX-680M-1
68 µH Shielded Drum Core, Wirewound Inductor 430 mA 2.362Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLS3012CX-680M-1 |
|---|---|
| Current - Saturation (Isat) | 0.3 mA |
| Current Rating | 430 mA |
| DC Resistance (DCR) (Max) | 2.362 Ohm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 68 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.118 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
