Description
General part information

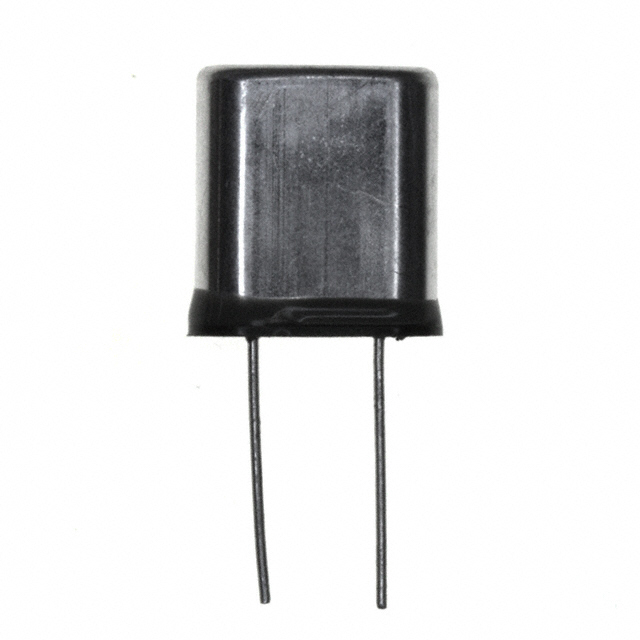

ECS-29.4-32-2P
2.94912 MHz ±50ppm Crystal 32pF HC-6/U
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-29.4-32-2P |
|---|---|
| Frequency | 2.94912 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Load Capacitance | 32 pF |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | HC-6/U |
| Type | MHz Crystal |
