Description
General part information
14020514402000

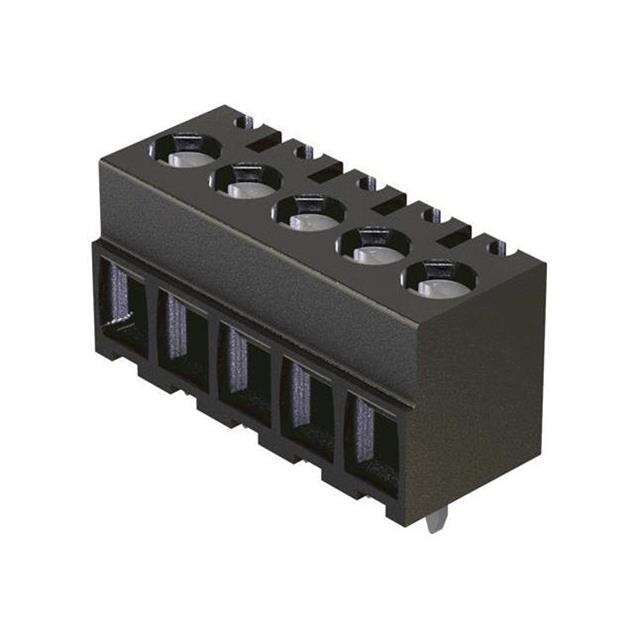

5 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 14020514402000 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Current | 12 A |
| Housing Material | PPA, PA, Polyphthalamide, Polyamide, Nylon |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Plating | Tin Plated |
| Positions Per Level | 5 |
| Screw Thread | M2 |
| Torque - Screw (Maximum) | 0.25 Nm |
| Torque - Screw (Minimum) | 0.2 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
