1299/25C SL001

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 25 CONDUCTOR, 22 AWG, 0.35 MM², 1000 FT, 304.8 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsComm, Control, Industrial Cable Catalog Product Change Notice EN +1

1299/25C SL001

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 25 CONDUCTOR, 22 AWG, 0.35 MM², 1000 FT, 304.8 M

Deep-Dive with AI

DocumentsComm, Control, Industrial Cable Catalog Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1299/25C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.368 in
Jacket (Insulation) Diameter [diameter]	9.35 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	25
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

1299/25C Series

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 25 CONDUCTOR, 22 AWG, 0.35 MM², 1000 FT, 304.8 M

Part	Wire Gauge	Usage	Jacket (Insulation) Material	Voltage	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Conductor Insulation	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Cable Type	Number of Conductors	Features	Conductor Material	Shield Material
ALPHA WIRE 1299/25C SL001	22 AWG	Communication, Control	Poly-Vinyl Chloride (PVC)	300 V	100 %	0.368 in	9.35 mm	-20 C	80 C	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Foil	7	30 AWG	Slate	Multi-Conductor	25	Drain Wire	Copper, Tinned	Aluminum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 5673.40
Newark	Spool of 1000	1	$ 6481.42

Description

General part information

1299/25C Series

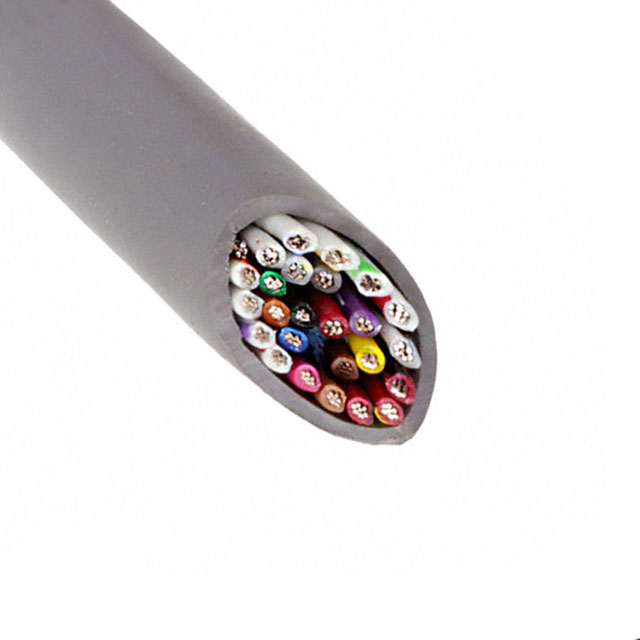

The 1299/25C SL001 is a 25-core Shielded Cable with tinned copper conductor and a PVC insulator. This multi-core cable comes with a slate PVC jacket, aluminium/Mylar tape foil shield and foil facing outward.

Documents

Technical documentation and resources

Comm, Control, Industrial Cable Catalog

Product Change Notice EN

Datasheet

Technical Data Sheet EN

Datasheet
