M3YYK-2406R
Active3M
IDC CABLE - MPD24K/MC24M/MPD24K
Deep-Dive with AI
Search across all available documentation for this part.
M3YYK-2406R
Active3M
IDC CABLE - MPD24K/MC24M/MPD24K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3YYK-2406R | M3YYK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Plug to Plug | Plug to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key, Strain Relief, Flange | Polarizing Key, Strain Relief, Flange |
| Length | 152.4 mm | 152.4 - 508 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.02 - 914.4 mm |
| Length | - | 1.5 - 3.34 ft |
| Length | - | 1.67 ft |
| Number of Positions | 24 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3YYK Series
IDC CABLE - MPD64K/MC64G/MPD64K
| Part | Pitch - Connector | Pitch - Connector | Number of Positions | Cable Termination | Pitch - Cable | Pitch - Cable | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Rows | Shielding | Length [x] | Length [x] | Features | Color | Number of Positions | Length | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.1 in | 2.54 mm | 64 | IDC | 0.05 " | 1.27 mm | Plug to Plug | 0.76 Ám | 30 Áin | Gold | 2 | Unshielded | 457.2 mm | 1.5 ft | Flange, Polarizing Key, Strain Relief | |||||||
0.1 in | 2.54 mm | 14 | IDC | 0.05 " | 1.27 mm | Plug to Plug | 0.76 Ám | 30 Áin | Gold | 2 | Unshielded | 457.2 mm | 1.5 ft | Flange, Polarizing Key, Strain Relief | |||||||
0.1 in | 2.54 mm | IDC | 0.05 " | 1.27 mm | Plug to Plug | 0.76 Ám | 30 Áin | Gold | 2 | Unshielded | Flange, Polarizing Key, Strain Relief | Multiple, Ribbon | 16 | 152.4 mm | 6 " | 0.5 ' | |||||
0.1 in | 2.54 mm | 26 | IDC | 0.05 " | 1.27 mm | Plug to Plug | 0.76 Ám | 30 Áin | Gold | 2 | Unshielded | Flange, Polarizing Key, Strain Relief | Multiple, Twisted Pair (Flat) | 508 mm | 1.67 ft | ||||||
0.1 in | 2.54 mm | 60 | IDC | 0.05 " | 1.27 mm | Plug to Plug | 0.76 Ám | 30 Áin | Gold | 2 | Unshielded | 914.4 mm | 3 ft | Flange, Polarizing Key, Strain Relief | Multiple, Ribbon | ||||||
0.1 in | 2.54 mm | 50 | IDC | 0.05 " | 1.27 mm | Plug to Plug | 0.76 Ám | 30 Áin | Gold | 2 | Unshielded | 914.4 mm | 3 ft | Flange, Polarizing Key, Strain Relief | Multiple, Ribbon | ||||||
0.1 in | 2.54 mm | 14 | IDC | 0.05 " | 1.27 mm | Plug to Plug | 0.76 Ám | 30 Áin | Gold | 2 | Unshielded | 1.02 m | 3.34 ft | Flange, Polarizing Key, Strain Relief | Multiple, Twisted Pair (Flat) | ||||||
0.1 in | 2.54 mm | 26 | IDC | 0.05 " | 1.27 mm | Plug to Plug | 0.76 Ám | 30 Áin | Gold | 2 | Unshielded | 457.2 mm | 1.5 ft | Flange, Polarizing Key, Strain Relief | Multiple, Ribbon | ||||||
0.1 in | 2.54 mm | 30 | IDC | 0.05 " | 1.27 mm | Plug to Plug | 0.76 Ám | 30 Áin | Gold | 2 | Unshielded | Flange, Polarizing Key, Strain Relief | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' | |||||
0.1 in | 2.54 mm | IDC | 0.05 " | 1.27 mm | Plug to Plug | 0.76 Ám | 30 Áin | Gold | 2 | Unshielded | 457.2 mm | 1.5 ft | Flange, Polarizing Key, Strain Relief | Multiple, Ribbon | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.64 | |
| 10 | $ 23.65 | |||
| 25 | $ 21.43 | |||
| 50 | $ 19.93 | |||
| 100 | $ 18.57 | |||
| 250 | $ 16.97 | |||
| 500 | $ 15.89 | |||
Description
General part information
M3YYK Series

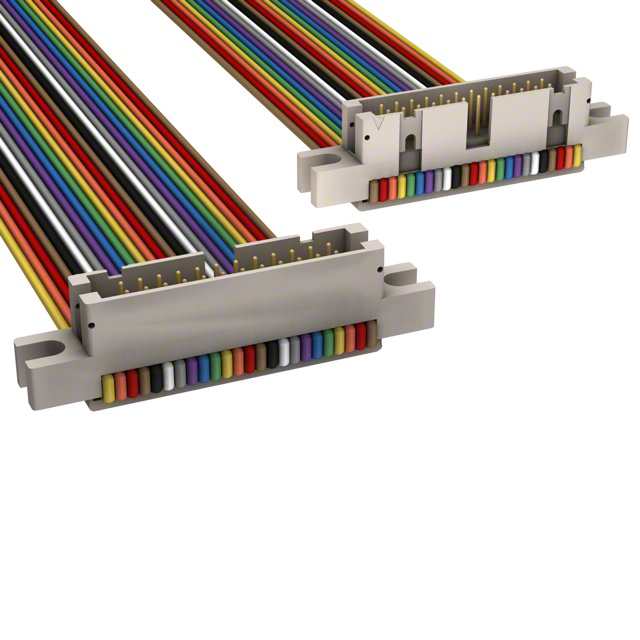

24 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")
