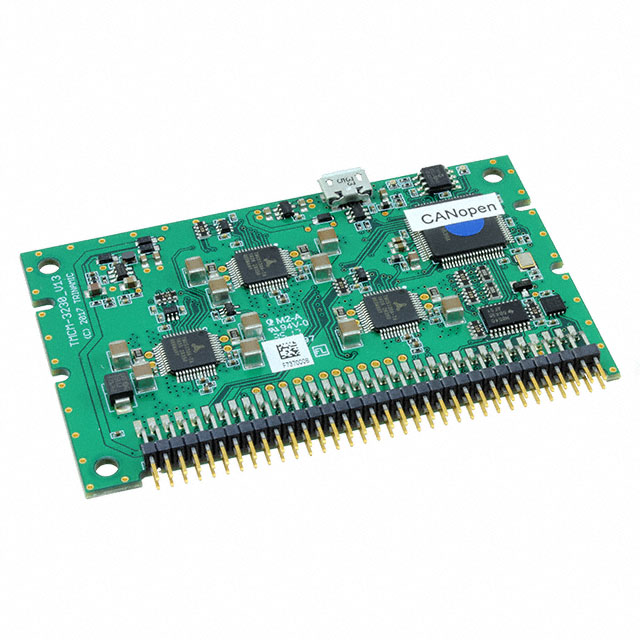

TMCM-3230-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
BOARD CONTROL STEPPER MOTOR CANO
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-3230-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
BOARD CONTROL STEPPER MOTOR CANO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-3230-CANOPEN | TMCM-3230 Series |
|---|---|---|
| Control / Drive Type | Bipolar, Stepper | Bipolar, Stepper |
| Current - Output | 1 A | 1 A |
| Interface | UART, SPI, CAN | UART, SPI, CAN |
| Motor Type | Stepper | Stepper |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Motors | 3 | 3 |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Type | Board | Board |
| Voltage - Load [Max] | 24 V | 24 V |
| Voltage - Load [Min] | 12 V | 12 V |
| Voltage - Supply [Max] | 24 V | 24 V |
| Voltage - Supply [Min] | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 223.08 | |
TMCM-3230 Series
BOARD CONTROL STEPPER MOTOR
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Type | Interface | Current - Output | Motor Type | Control / Drive Type | Voltage - Load [Max] | Voltage - Load [Min] | Number of Motors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-3230-TMCL | Chassis Mount | -30 ░C | 40 °C | 24 V | 12 V | Board | CAN, SPI, UART | 1 A | Stepper | Bipolar, Stepper | 24 V | 12 V | 3 |
Analog Devices Inc./Maxim Integrated TMCM-3230-CANOPEN | Chassis Mount | -30 ░C | 40 °C | 24 V | 12 V | Board | CAN, SPI, UART | 1 A | Stepper | Bipolar, Stepper | 24 V | 12 V | 3 |
Description
General part information
TMCM-3230 Series
Stepper, Bipolar 12 ~ 24VDC Supply 1A 12 ~ 24V Load
Documents
Technical documentation and resources
No documents available
