EHT3FBAU
ActiveSwitchcraft Inc.

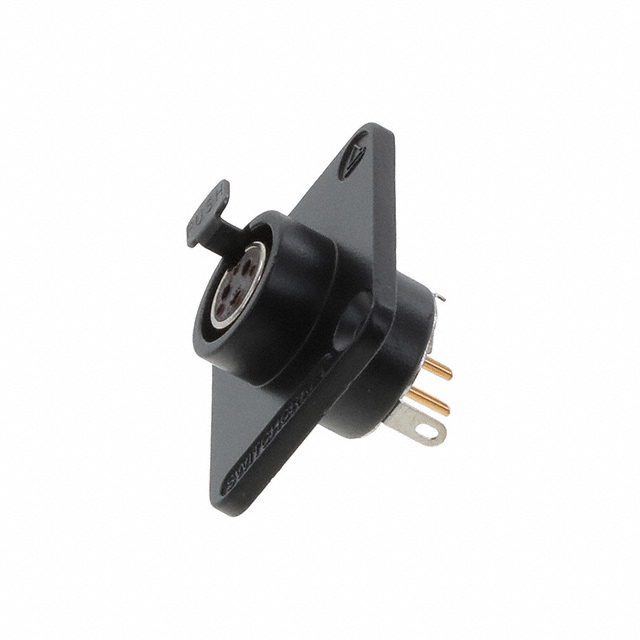

CONN PLUG FMALE MINI XLR 3P SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EHT3FBAU
ActiveSwitchcraft Inc.
CONN PLUG FMALE MINI XLR 3P SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EHT3FBAU | EHT3F Series |
|---|---|---|
| Applications | Audio, Instrumentation | Audio, Instrumentation |
| Color | Black | Silver, Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Silver, Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Latch Lock | Latch Lock |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | Flange | Flange |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | Mini XLR | Mini XLR |
EHT3F Series
CONN PLUG FMALE MINI XLR 3P SLDR
| Part | Color | Connector Type | Fastening Type | Shell Finish | Shell Material | Contact Material | Orientation | Insert Material | Shell Size - Insert | Applications | Primary Material | Contact Finish - Mating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EHT3FPKG | Silver | Female Sockets, Plug | Latch Lock | Nickel | Copper Alloy | Copper Alloy | Keyed | Thermoplastic | Mini XLR | Audio, Instrumentation | Metal | Silver | Flange |
Switchcraft Inc. EHT3FAUPKG | Silver | Female Sockets, Plug | Latch Lock | Nickel | Copper Alloy | Copper Alloy | Keyed | Thermoplastic | Mini XLR | Audio, Instrumentation | Metal | Gold | Flange |
Switchcraft Inc. EHT3FAU | Silver | Female Sockets, Plug | Latch Lock | Nickel | Copper Alloy | Copper Alloy | Keyed | Thermoplastic | Mini XLR | Audio, Instrumentation | Metal | Gold | Flange |
Switchcraft Inc. EHT3FBAU | Black | Female Sockets, Plug | Latch Lock | Nickel | Copper Alloy | Copper Alloy | Keyed | Thermoplastic | Mini XLR | Audio, Instrumentation | Metal | Gold | Flange |
Switchcraft Inc. EHT3FBAUPKG | Black | Female Sockets, Plug | Latch Lock | Nickel | Copper Alloy | Copper Alloy | Keyed | Thermoplastic | Mini XLR | Audio, Instrumentation | Metal | Gold | Flange |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.84 | |
Description
General part information
EHT3F Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
