152250-0110-GB

Active

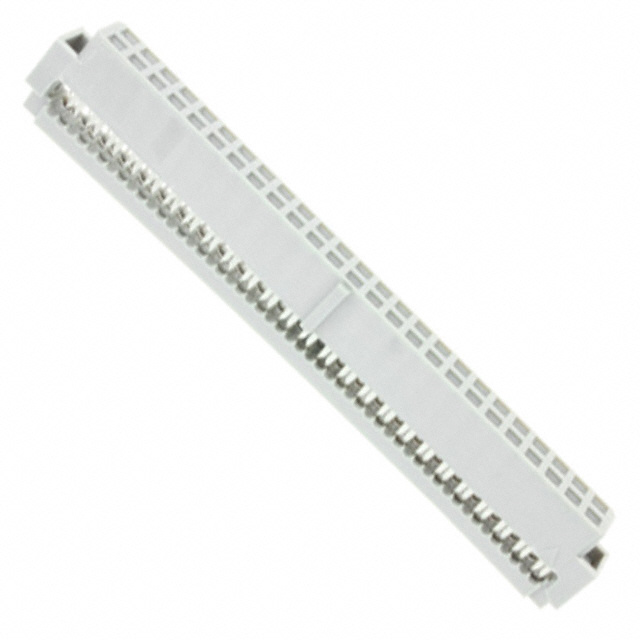

HEADER CONNECTOR,CABLE MOUNT,PLUG,50 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

HEADER CONNECTOR,CABLE MOUNT,PLUG,50 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	152250-0110-GB	152250 Series

Cable Termination	IDC	IDC
Color	Gray	Gray
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 µm
Contact Finish Thickness	30 Áin	15 - 30 µin
Contact Type	Female Socket	Female Socket
Features	Polarizing Key, Feed Through	Closed End, Polarizing Key, Strain Relief, Feed Through
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	50	50
Number of Rows	2	2
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	2 mm	2 mm
Row Spacing	0.079 in	0.079 in
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable

CONN RCPT 50POS IDC 28AWG GOLD

Part	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Mounting Type	Number of Positions	Cable Termination	Contact Finish	Contact Type	Features	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Wire Gauge	Wire Type
3M 152250-0013-GG	0.079 in	2 mm	2 mm	0.079 in	Free Hanging (In-Line)	50	IDC	Gold	Female Socket	Closed End, Polarizing Key, Strain Relief	Gray	15 µin	0.38 µm	2	Receptacle	28 AWG	Ribbon Cable
3M 152250-0110-GB	0.079 in	2 mm	2 mm	0.079 in	Free Hanging (In-Line)	50	IDC	Gold	Female Socket	Feed Through, Polarizing Key	Gray	30 Áin	0.76 Ám	2	Receptacle	28 AWG	Ribbon Cable
3M 152250-0103-GB	0.079 in	2 mm	2 mm	0.079 in	Free Hanging (In-Line)	50	IDC	Gold	Female Socket	Feed Through, Strain Relief	Gray	30 Áin	0.76 Ám	2	Receptacle	28 AWG	Ribbon Cable
3M 152250-0100-GG	0.079 in	2 mm	2 mm	0.079 in	Free Hanging (In-Line)	50	IDC	Gold	Female Socket	Feed Through	Gray	15 µin	0.38 µm	2	Receptacle	28 AWG	Ribbon Cable
3M 152250-0100-GB	0.079 in	2 mm	2 mm	0.079 in	Free Hanging (In-Line)	50	IDC	Gold	Female Socket	Feed Through	Gray	30 Áin	0.76 Ám	2	Receptacle	28 AWG	Ribbon Cable
3M 152250-0113-GB	0.079 in	2 mm	2 mm	0.079 in	Free Hanging (In-Line)	50	IDC	Gold	Female Socket	Feed Through, Polarizing Key, Strain Relief	Gray	30 Áin	0.76 Ám	2	Receptacle	28 AWG	Ribbon Cable
3M 152250-0110-GG	0.079 in	2 mm	2 mm	0.079 in	Free Hanging (In-Line)	50	IDC	Gold	Female Socket	Feed Through, Polarizing Key	Gray	15 µin	0.38 µm	2	Receptacle	28 AWG	Ribbon Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Rectangular Receptacle Connector IDC Gold 28 AWG
