Description
General part information
M7-1000-175-342

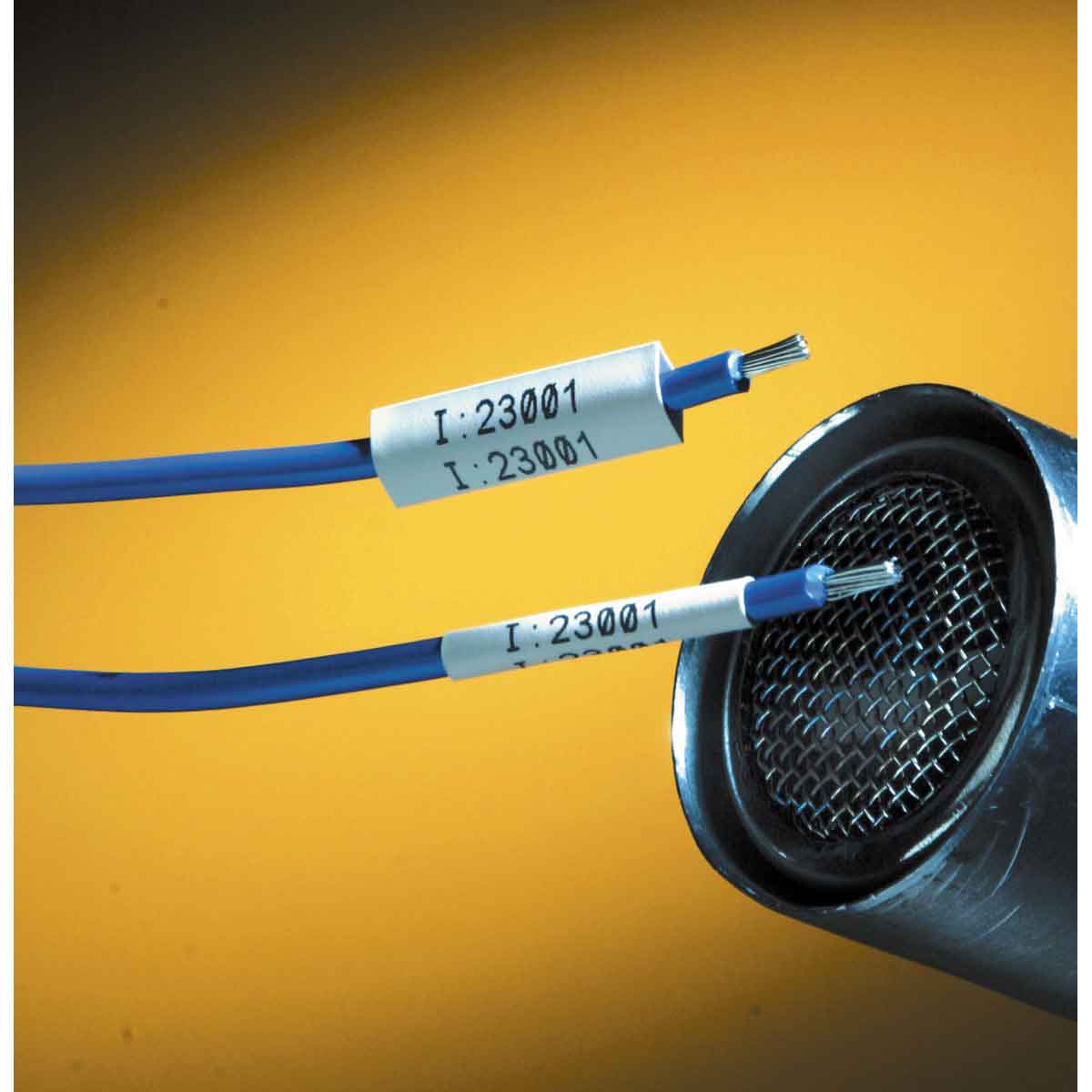

White Heat Shrinkable Label 1.75" W x 1.66" H (44.5mm x 42.2mm); Cable O.D. 0.33" ~ 0.95" (8.5mm ~ 24.1mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | M7-1000-175-342 |
|---|---|
| Cable O.D. (Max) | 0.95 " |
| Cable O.D. (Min) | 0.33 " |
| Color | White |
| Label Height | 1.66 " |
| Label Type | Heat Shrinkable |
| Label Width | 1.75 in |
| Material | Polyolefin (PO) |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -55 °C |
