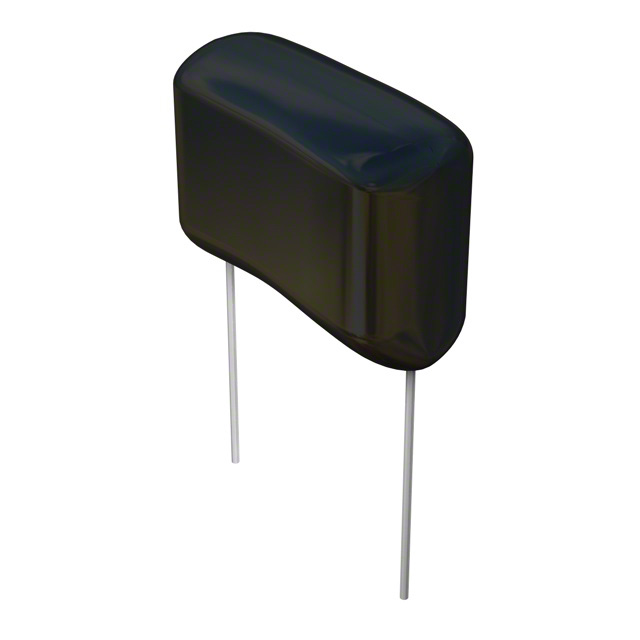

DME2W6P8K-F
ActiveCornell Dubilier Knowles
CAP FILM 6.8UF 10% 250VDC RADIAL
DME2W6P8K-F
ActiveCornell Dubilier Knowles
CAP FILM 6.8UF 10% 250VDC RADIAL
Description
General part information
DME2W6P8K-F
6.8 µF Film Capacitor 160V 250V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DME2W6P8K-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 6.8 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.886 in |
| Lead Spacing | 1.083 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.22 in |
| Size / Dimension Width | 0.531 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 250 VDC |
