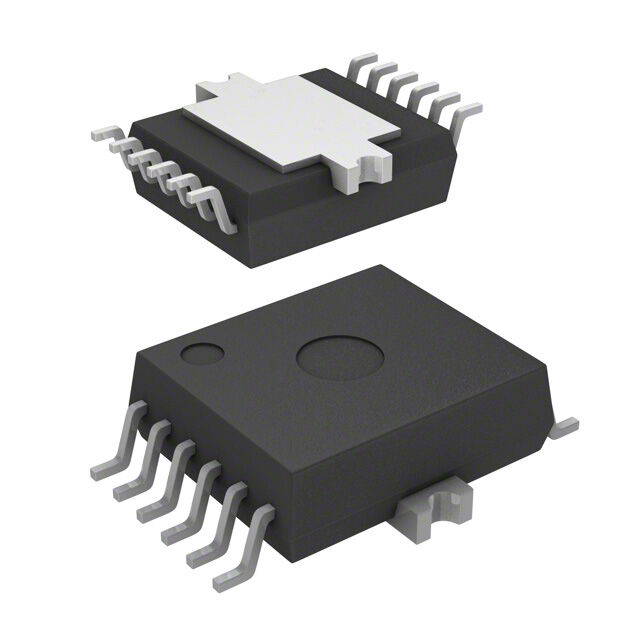

ITS5215LCUMA1

Active

Infineon Technologies

HIGH SIDE POWER SWITCH WITH INTEGRATED VERTICAL POWER FET, PROVIDING EMBEDDED PROTECTION AND DIAGNOSTIC FUNCTIONS.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

ITS5215LCUMA1

Active

Infineon Technologies

HIGH SIDE POWER SWITCH WITH INTEGRATED VERTICAL POWER FET, PROVIDING EMBEDDED PROTECTION AND DIAGNOSTIC FUNCTIONS.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ITS5215LCUMA1

Current - Output (Max) [Max]	3.7 A
Fault Protection	Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect
Features	Status Flag
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	12-BSOP Exposed Pad
Package / Case	7.5 mm
Package / Case	0.295 in
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	70 mOhm
Supplier Device Package	PG-DSO-12-9
Switch Type	General Purpose
Voltage - Load [Max]	40 V
Voltage - Load [Min]	5.5 V
Voltage - Supply (Vcc/Vdd)	False

ITS5215 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Number of Outputs	Output Type	Rds On (Typ)	Fault Protection	Mounting Type	Package / Case	Package / Case	Package / Case	Supplier Device Package	Switch Type	Voltage - Supply (Vcc/Vdd)	Features	Input Type	Interface
Infineon Technologies ITS5215LCUMA1	-30 °C	85 °C	High Side	1:1	3.7 A	5.5 V	40 V	2	N-Channel	70 mOhm	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	Surface Mount	12-BSOP Exposed Pad	7.5 mm	0.295 in	PG-DSO-12-9	General Purpose		Status Flag	Non-Inverting	On/Off

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.71
		10	$ 2.02
		25	$ 1.85
		100	$ 1.66
		250	$ 1.57
		500	$ 1.51
	Digi-Reel®	1	$ 2.71
		10	$ 2.02
		25	$ 1.85
		100	$ 1.66
		250	$ 1.57
		500	$ 1.51
	Tape & Reel (TR)	1000	$ 1.47
		2000	$ 1.43
		3000	$ 1.41
		5000	$ 1.39
		7000	$ 1.38
Newark	Each (Supplied on Cut Tape)	1	$ 2.91
		10	$ 2.17
		25	$ 1.99
		50	$ 1.88
		100	$ 1.79
		250	$ 1.68
		500	$ 1.63

Description

General part information

ITS5215 Series

The ITS5215L is a dual channel high side Power Switch N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology. Providing embedded protection and diagnostic functions.
