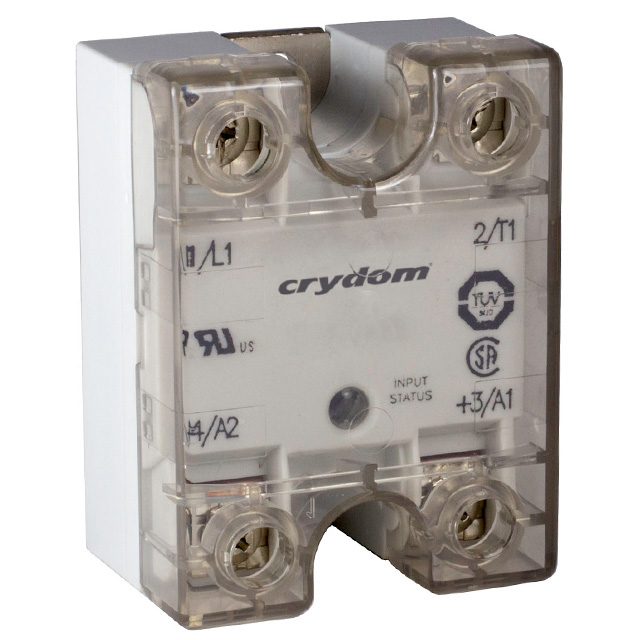

84137011H

Active

Sensata-Crydom

SSR RELAY SPST-NO 25A 24-280V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 25A 24-280V

Technical Specifications

Parameters and characteristics commom to parts in this series

SSR RELAY SPST-NO 50A 24-280V

Part	Output Type	Voltage - Input [Min]	Voltage - Input [Max]	Load Current	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Mounting Type
Sensata-Crydom 84137022	AC, Zero Cross	18 VAC/DC	36 VAC	50 A	Screw Terminal	24 V	280 V	Hockey Puck	-40 °C	80 C	CE, CSA, cURus, TUV	Chassis Mount
Sensata-Crydom 84137011H	AC, Zero Cross	90 VAC	280 VAC/DC	25 A	Screw Terminal	24 V	280 V	Hockey Puck	-40 °C	80 C	CE, CSA, cURus, TUV	Chassis Mount
Sensata-Crydom 84137042	AC, Zero Cross	18 VAC/DC	36 VAC	100 A	Screw Terminal	24 V	280 V	Hockey Puck	-40 °C	80 C	CE, CSA, cURus, TUV	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Hockey Puck
