236-608
ActiveWAGO Corporation
PCB TERMINAL BLOCK; 2.5 MM; PIN
236-608
ActiveWAGO Corporation
PCB TERMINAL BLOCK; 2.5 MM; PIN
Description
General part information
236-608

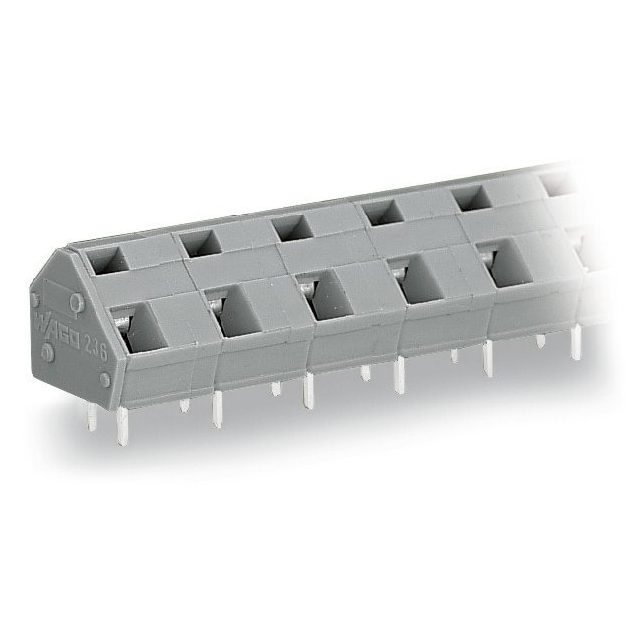

8 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.400" (10.16mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 236-608 |
|---|---|
| Clamp Material | Steel |
| Clamp Plating | Nickel Plated |
| Color | Gray |
| Contact Material | Electrolytic Copper |
| Current | 15 A |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -60 °C |
| Pitch | 0.4 in |
| Plating | Tin Plated |
| Positions Per Level | 8 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
