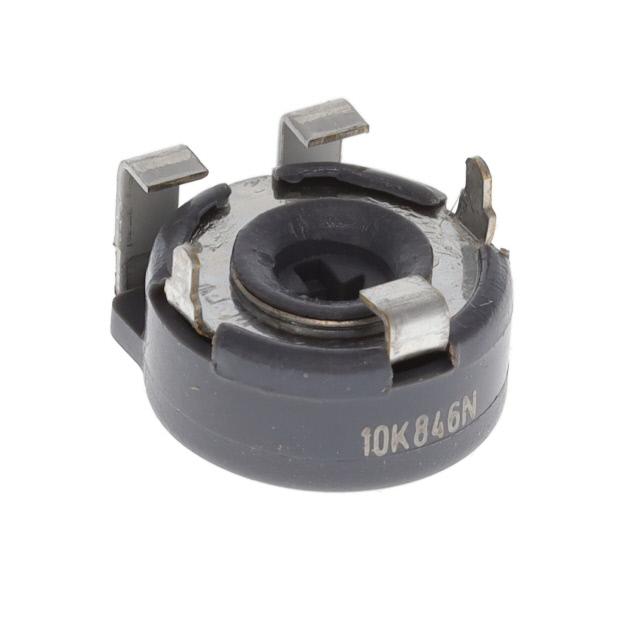

PS10LV60-103A3030-PM
ActiveAmphenol Piher Sensing Systems
TRIMMER 10K OHM 0.15W J LEAD TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PS10LV60-103A3030-PM
ActiveAmphenol Piher Sensing Systems
TRIMMER 10K OHM 0.15W J LEAD TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PS10LV60-103A3030-PM |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Power (Watts) | 150 mW |
| Resistance | 10000 Ohms |
| Resistive Material | Carbon |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 0.406 in |
| Size / Dimension [diameter] | 10.3 mm |
| Temperature Coefficient | 1000 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.48 | |
| 5 | $ 1.25 | |||
| 10 | $ 1.16 | |||
| 25 | $ 1.05 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.91 | |||
| Digi-Reel® | 1 | $ 1.48 | ||
| 5 | $ 1.25 | |||
| 10 | $ 1.16 | |||
| 25 | $ 1.05 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.91 | |||
| Tape & Reel (TR) | 2000 | $ 0.66 | ||
Description
General part information
PS10LV60 Series
10 kOhms 0.15W J Lead Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Documents
Technical documentation and resources
