Technical Specifications
Parameters and characteristics for this part
| Specification | MB-300-UC25-H |
|---|---|
| Between Board Height | 15.88 mm |
| Between Board Height | 0.625 in |
| Between Board Height | 0.625 in |
| Color | Black |
| Diameter - Outside [diameter] | 15.62 mm |
| Diameter - Outside [diameter] | 0.615 in |
| Features | Vibration Dampening |
| Gender | Male, Blank |
| Length - Overall | |
| Length - Overall | 28.58 mm |
| Length - Overall [x] | 1.125 " |
| Material | Synthetic Rubber |
| Screw, Thread Size | 1/4"-20 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.60 | |
| 10 | $ 4.20 | |||
| 25 | $ 3.95 | |||
| 50 | $ 3.60 | |||
| 100 | $ 3.55 | |||
| 300 | $ 3.50 | |||
| 500 | $ 3.27 | |||
Description
General part information
MB-300 Series

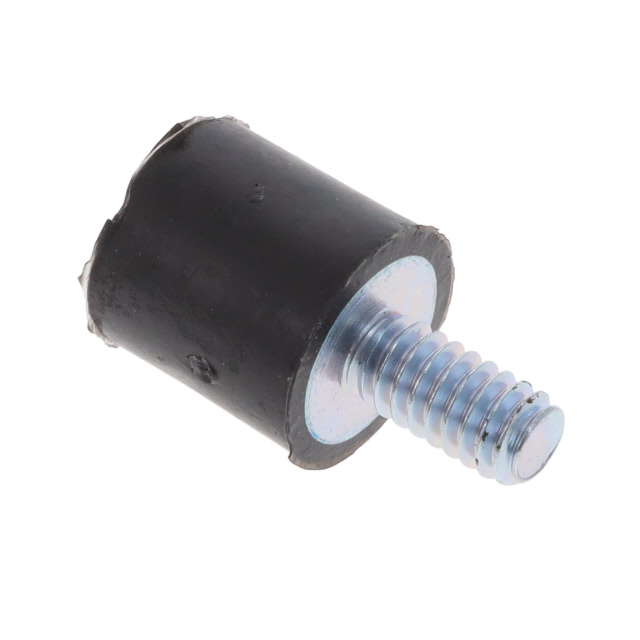

Round Standoff Threaded 1/4"-20 Synthetic Rubber 0.625" (15.88mm) 5/8" Black
Documents
Technical documentation and resources
