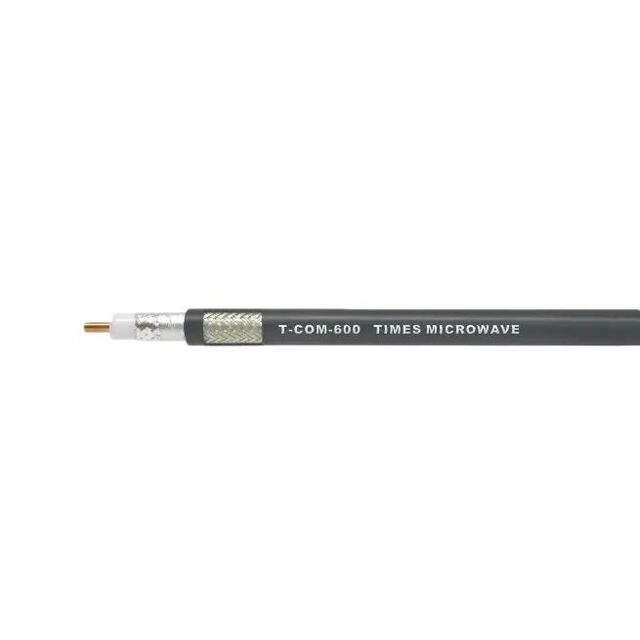

TCOM-600
ActiveAmphenol Times Microwave Systems
STANDARD CABLE, BLK PE JKT FOOT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCOM-600
ActiveAmphenol Times Microwave Systems
STANDARD CABLE, BLK PE JKT FOOT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TCOM-600 | TCOM Series |
|---|---|---|
| Cable Type | Coaxial | Coaxial, Coaxial - Riser |
| Conductor Material | Aluminum, Copper Coated | Aluminum, Copper Coated, Copper, Bare |
| Conductor Strand | Solid | Solid |
| Dielectric Diameter | - | 2.79 mm |
| Dielectric Diameter [diameter] | 11.56 mm | 0.11 - 11.56 mm |
| Dielectric Diameter [diameter] | 0.455 in | 0.116 - 0.455 in |
| Dielectric Material | Foam Polyethylene (FPE) | Foam Polyethylene (FPE) |
| Impedance | 50 Ohms | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 14.99 mm | 4.95 - 14.99 mm |
| Jacket (Insulation) Diameter [diameter] | 0.59 in | 0.195 - 0.59 in |
| Jacket (Insulation) Material | Polyethylene (PE) | Polyethylene (PE) |
| Jacket Color | Black | Black |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Length | - | 152.4 m |
| Length | - | 6000 in |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Shield Material | Copper, Silver Coated | Copper, Silver Coated |
| Shield Type | Braid | Braid, Foil |
| Spool Size | 500 ' | 500 ' |
| Spool Size | 152.4 m | 152.4 m |
| VoP, Velocity of Propagation | 87 | 76 - 87 |
TCOM Series
STANDARD CABLE, BLACK PE JACKET
| Part | Dielectric Material | Impedance | Shield Type | Jacket Color | Shield Material | Conductor Strand | Cable Type | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | VoP, Velocity of Propagation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Length | Spool Size | Spool Size | Dielectric Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems TCOM-400 | Foam Polyethylene (FPE) | 50 Ohms | Braid | Black | Copper, Silver Coated | Solid | Coaxial | 7.24 mm | 0.285 in | Aluminum, Copper Coated | 85 °C | -40 °C | Polyethylene (PE) | 85 | 10.29 mm | 0.405 in | 152.4 m | 6000 in | ||||
Amphenol Times Microwave Systems TCOM-600 | Foam Polyethylene (FPE) | 50 Ohms | Braid | Black | Copper, Silver Coated | Solid | Coaxial | 11.56 mm | 0.455 in | Aluminum, Copper Coated | 85 °C | -40 °C | Polyethylene (PE) | 87 | 14.99 mm | 0.59 in | Enter Number of Feet in Order Quantity | 500 ' | 152.4 m | |||
Amphenol Times Microwave Systems TCOM-300-FR | Foam Polyethylene (FPE) | 50 Ohms | Braid | Black | Copper, Silver Coated | Solid | Coaxial - Riser | 4.83 mm | 0.19 in | Copper, Bare | 85 °C | -40 °C | Polyethylene (PE) | 85 | 7.62 mm | 0.3 in | ||||||
Amphenol Times Microwave Systems TCOM-240-FR | Foam Polyethylene (FPE) | 50 Ohms | Braid | Black | Copper, Silver Coated | Solid | Coaxial - Riser | 3.81 mm | 0.15 in | Copper, Bare | 85 °C | -40 °C | Polyethylene (PE) | 84 | 6.1 mm | 0.24 in | ||||||
Amphenol Times Microwave Systems TCOM-500-FR | Foam Polyethylene (FPE) | 50 Ohms | Braid | Black | Copper, Silver Coated | Solid | Coaxial - Riser | 9.4 mm | 0.37 " | Aluminum, Copper Coated | 85 °C | -40 °C | Polyethylene (PE) | 86 | 12.7 mm | 0.5 in | ||||||
Amphenol Times Microwave Systems TCOM-600-FR | Foam Polyethylene (FPE) | 50 Ohms | Braid | Black | Copper, Silver Coated | Solid | Coaxial - Riser | 11.56 mm | 0.455 in | Aluminum, Copper Coated | 85 °C | -40 °C | Polyethylene (PE) | 87 | 14.99 mm | 0.59 in | ||||||
Amphenol Times Microwave Systems TCOM-200-FR | Foam Polyethylene (FPE) | 50 Ohms | Braid | Black | Copper, Silver Coated | Solid | Coaxial - Riser | 2.95 mm | 0.116 in | Copper, Bare | 85 °C | -40 °C | Polyethylene (PE) | 83 | 4.95 mm | 0.195 in | ||||||
Amphenol Times Microwave Systems TCOM-240 | Foam Polyethylene (FPE) | 50 Ohms | Braid | Black | Copper, Silver Coated | Solid | Coaxial | 3.81 mm | 0.15 in | Copper, Bare | 85 °C | -40 °C | Polyethylene (PE) | 84 | 6.1 mm | 0.24 in | ||||||
Amphenol Times Microwave Systems TCOM-200 | Foam Polyethylene (FPE) | 50 Ohms | Braid | Black | Copper, Silver Coated | Solid | Coaxial | 2.95 mm | 0.116 in | Copper, Bare | 85 °C | -40 °C | Polyethylene (PE) | 83 | 4.95 mm | 0.195 in | ||||||
Amphenol Times Microwave Systems TCOM-300 | Foam Polyethylene (FPE) | 50 Ohms | Braid | Black | Copper, Silver Coated | Solid | Coaxial | 4.83 mm | 0.19 in | Copper, Bare | 85 °C | -40 °C | Polyethylene (PE) | 85 | 7.62 mm | 0.3 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 19.90 | |
| 3 | $ 18.38 | |||
| 5 | $ 17.77 | |||
| 7 | $ 17.36 | |||
| 10 | $ 16.86 | |||
| 25 | $ 15.84 | |||
| 50 | $ 15.03 | |||
| 100 | $ 14.32 | |||
Description
General part information
TCOM Series
Coaxial Cable Enter Number of Feet in Order Quantity 50 Ohms
