9949 060100

Active

Belden Inc.

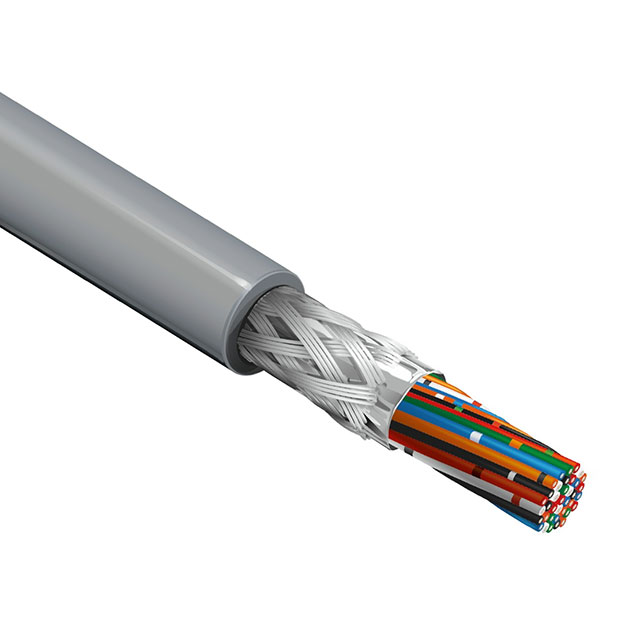

CABLE 37COND 22AWG CHRM SHD 100'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 37COND 22AWG CHRM SHD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	9949 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	11.68 mm
Jacket (Insulation) Diameter [diameter]	0.46 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	37
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	22 AWG

Part	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Wire Gauge	Conductor Material	Jacket Color	Conductor Insulation	Usage	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Length	Length	Voltage	Ratings
Belden Inc. 9949 060100	Multi-Conductor	7	30 AWG	30.5 m	100 ft	0.04 in	1.016 mm	65 % 100 %	37	11.68 mm	0.46 in	Aluminum Copper Tinned	22 AWG	Copper Tinned	Chrome	Poly-Vinyl Chloride (PVC)	Computer	Braid Foil	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)
Belden Inc. 9949 0601000	Multi-Conductor	7	30 AWG			0.04 in	1.016 mm	65 % 100 %	37	11.68 mm	0.46 in	Aluminum Copper Tinned	22 AWG	Copper Tinned	Chrome	Poly-Vinyl Chloride (PVC)	Computer	Braid Foil	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	300 V	UL Style 2464

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 2175.12

General part information

37 Conductor Multi-Conductor Cable Chrome 22 AWG Foil, Braid 100.0' (30.5m)
