1321G3
ActiveAnderson Power Products, Inc.

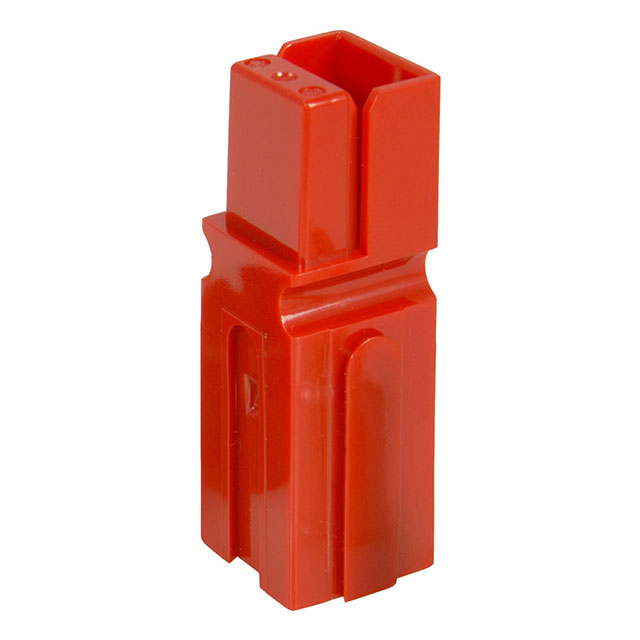

CONN HSG 1POS RED
1321G3
ActiveAnderson Power Products, Inc.
CONN HSG 1POS RED
Description
General part information
1321G3
1 Position Blade Type Power Housing Connector Non-Gendered Red
Technical Specifications
Parameters and characteristics for this part
| Specification | 1321G3 |
|---|---|
| Color | Red |
| Connector Type | Non-Gendered |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Current Rating | 120 A |
| Fastening Type | Spring Retention |
| Features | Stackable |
| Material - Insulation | PC, Polycarbonate |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Voltage Rating | 600 V |
