LCM-H01601DTR

Active

Lumex Opto/Components Inc.

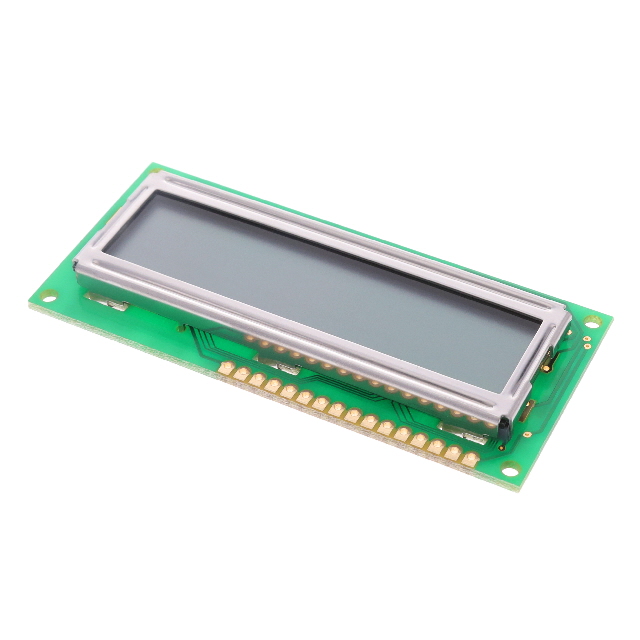

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LCM-H01601DTR	LCM-H01601 Series

Backlight	Without Backlight	Without Backlight, LED
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size [y]	3.07 mm	3.07 mm
Character Size [z]	6.56 mm	6.56 mm
Display Format [x]	16	16
Display Format [y]	1	1
Display Mode	Reflective	Reflective, Transflective
Display Type	TN - Twisted Nematic	TN - Twisted Nematic, STN - Super-Twisted Nematic
Dot Size [x]	0.55 mm	0.55 mm
Dot Size [y]	0.75 mm	0.75 mm
Interface	Parallel, 8-Bit	Parallel, 8-Bit
Number of Characters	16	16
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline L x W x H [x]	80 mm	80 mm
Outline L x W x H [y]	36 mm	36 mm
Outline L x W x H [z]	12.7 mm	12.7 mm
Viewing Area [x]	66 mm	66 mm
Viewing Area [y]	16 mm	16 mm
Voltage - Supply [Max]	5.3 V	5.3 V
Voltage - Supply [Min]	4.7 V	4.7 V

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Part	Interface	Display Type	Operating Temperature [Min]	Operating Temperature [Max]	Display Mode	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Dot Size [y]	Dot Size [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Characters	Character Size [z]	Character Size [y]	Viewing Area [x]	Viewing Area [y]	Character Format [y]	Character Format [x]	Backlight	Display Format [x]	Display Format [y]
Lumex Opto/Components Inc. LCM-H01601DTR	Parallel, 8-Bit	TN - Twisted Nematic	-20 C	70 °C	Reflective	12.7 mm	36 mm	80 mm	0.75 mm	0.55 mm	4.7 V	5.3 V	16	6.56 mm	3.07 mm	66 mm	16 mm	8 Dots	5 Dots	Without Backlight	16	1
Lumex Opto/Components Inc. LCM-H01601DSR	Parallel, 8-Bit	STN - Super-Twisted Nematic	-20 C	70 °C	Reflective	12.7 mm	36 mm	80 mm	0.75 mm	0.55 mm	4.7 V	5.3 V	16	6.56 mm	3.07 mm	66 mm	16 mm	8 Dots	5 Dots	Without Backlight	16	1
Lumex Opto/Components Inc. LCM-H01601DSF	Parallel, 8-Bit	STN - Super-Twisted Nematic	-20 C	70 °C	Transflective	12.7 mm	36 mm	80 mm	0.75 mm	0.55 mm	4.7 V	5.3 V	16	6.56 mm	3.07 mm	66 mm	16 mm	8 Dots	5 Dots	LED	16	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Reflective 5 x 8 Dots TN - Twisted Nematic Without Backlight Parallel, 8-Bit 80.00mm x 36.00mm x 12.70mm
