RR3402C

Active

E-Switch

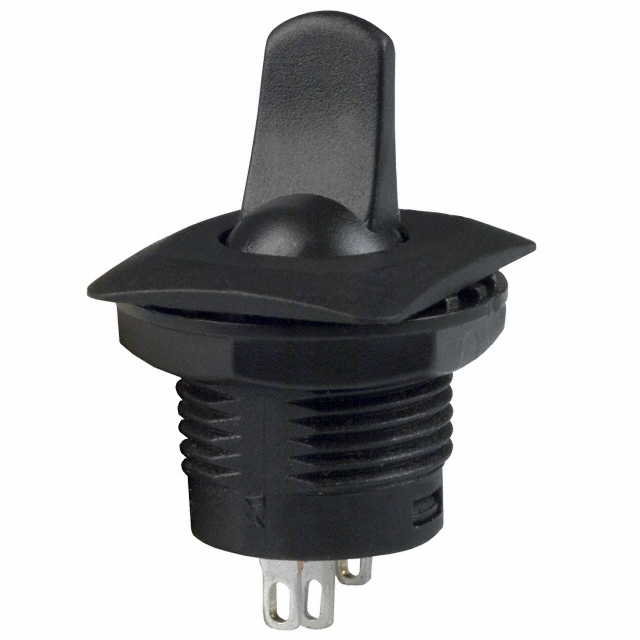

SWITCH ROCKER SPDT 6A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPDT 6A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 6A (AC) 125 V Panel Mount, Threaded Body with Nut

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	RR3402C	- Series

Actuator Marking	No Marking	No Marking
Actuator Type	Paddle	Paddle
Circuit	SPDT	SPST, SPDT, DPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	6 A	6 - 10 A
Electrical Life	6000 Cycles	6000 Cycles
Mechanical Life	20000 Cycles	20000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	15 mm	15 - 18 mm
Switch Function	On-On	On-Off, On-Off-On, On-On
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER SPST 6A 125V

Part	Voltage Rating - AC	Current Rating (Amps)	Color - Actuator/Cap	Mechanical Life	Switch Function	Termination Style	Mounting Type	Panel Cutout Dimensions [diameter]	Circuit	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Marking
E-Switch RR3402A	125 V	6 A	Black	20000 Cycles	On-Off	Solder Lug	Panel Mount, Threaded Body with Nut	15 mm	SPST	6000 Cycles	65 °C	0 °C	Paddle	No Marking
E-Switch RR3402D	125 V	6 A	Black	20000 Cycles	On-Off-On	Solder Lug	Panel Mount, Threaded Body with Nut	15 mm	SPDT	6000 Cycles	65 °C	0 °C	Paddle	No Marking
E-Switch RR3405A	125 V	10 A	Black		On-Off	Solder Lug	Panel Mount, Threaded Body with Nut	18 mm	DPST				Paddle	No Marking
E-Switch RR3402C	125 V	6 A	Black	20000 Cycles	On-On	Solder Lug	Panel Mount, Threaded Body with Nut	15 mm	SPDT	6000 Cycles	65 °C	0 °C	Paddle	No Marking
