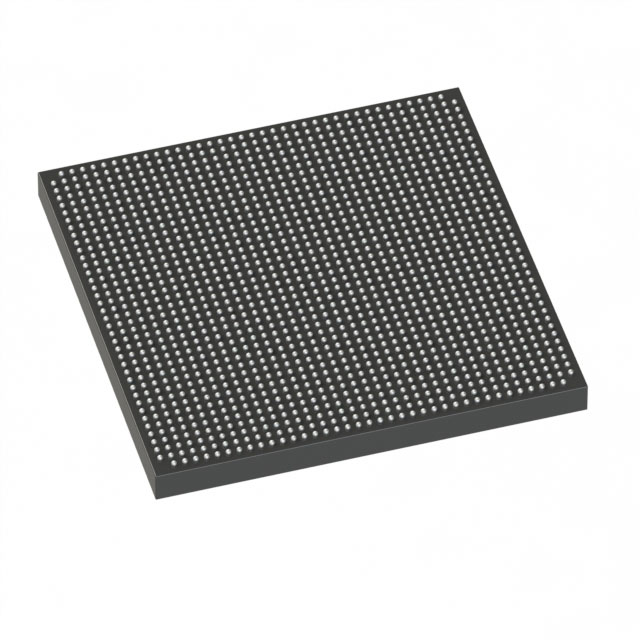

5AGXBB5D4F40C5N
ObsoleteAltera
IC FPGA 704 I/O 1517FBGA
Deep-Dive with AI
Search across all available documentation for this part.
5AGXBB5D4F40C5N
ObsoleteAltera
IC FPGA 704 I/O 1517FBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5AGXBB5D4F40C5N | 5AGXBB5 Series |
|---|---|---|
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 704 | 544 - 704 I/O |
| Number of LABs/CLBs | 19811 | 19811 |
| Number of Logic Elements/Cells | 420000 | 420000 |
| Operating Temperature [Max] | 85 °C | 85 - 100 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Package / Case | 1517-BBGA | 1152-BBGA, FCBGA Exposed Pad, 1517-BBGA |
| Supplier Device Package | 1517-FBGA (40x40) | 1152-FBGA (35x35), 1517-FBGA (40x40) |
| Total RAM Bits | 23625728 Bits | 23625728 Bits |
| Voltage - Supply [Max] | 1.13 V | 1.13 V |
| Voltage - Supply [Min] | 1.07 V | 1.07 V |
5AGXBB5 Series
IC FPGA 544 I/O 1152FBGA
| Part | Number of I/O | Number of Logic Elements/Cells | Mounting Type | Total RAM Bits | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Number of LABs/CLBs | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
Altera 5AGXBB5D4F35C4N | 544 I/O | 420000 | Surface Mount | 23625728 Bits | 0 °C | 85 °C | 1.07 V | 1.13 V | 19811 | 1152-BBGA, FCBGA Exposed Pad | 1152-FBGA (35x35) |
Altera 5AGXBB5D4F40C5N | 704 | 420000 | Surface Mount | 23625728 Bits | 0 °C | 85 °C | 1.07 V | 1.13 V | 19811 | 1517-BBGA | 1517-FBGA (40x40) |
Altera 5AGXBB5D6F35C6N | 544 I/O | 420000 | Surface Mount | 23625728 Bits | 0 °C | 85 °C | 1.07 V | 1.13 V | 19811 | 1152-BBGA, FCBGA Exposed Pad | 1152-FBGA (35x35) |
Altera 5AGXBB5D4F40I5 | 704 | 420000 | Surface Mount | 23625728 Bits | -40 C | 100 °C | 1.07 V | 1.13 V | 19811 | 1517-BBGA | 1517-FBGA (40x40) |
Altera 5AGXBB5D4F35C5N | 544 I/O | 420000 | Surface Mount | 23625728 Bits | 0 °C | 85 °C | 1.07 V | 1.13 V | 19811 | 1152-BBGA, FCBGA Exposed Pad | 1152-FBGA (35x35) |
Altera 5AGXBB5D4F35I5N | 544 I/O | 420000 | Surface Mount | 23625728 Bits | -40 C | 100 °C | 1.07 V | 1.13 V | 19811 | 1152-BBGA, FCBGA Exposed Pad | 1152-FBGA (35x35) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
5AGXBB5 Series
Arria V GX Field Programmable Gate Array (FPGA) IC 704 23625728 420000 1517-BBGA
