TS2P2M20

Active

Switchcraft Inc.

CONN RCPT MALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TS2P2M20	TS2P2M Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Crimp, Solder Cup	Solder, Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE 2POS GOLD SOLDER

Part	Mounting Type	Applications	Number of Positions	Ingress Protection	Insert Material	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Color	Shell Material	Orientation	Shielding	Primary Material	Contact Finish - Mating	Contact Material	Shell Finish	Termination	Voltage Rating
Switchcraft Inc. TS2P2M20-BP	Panel Mount, Through Hole	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	2	IP66, IP67, IP68	Liquid Crystal Polymer (LCP)	Bulkhead - Front Side Nut	135 °C	-40 °C	Male Pins, Receptacle	Silver	Copper Alloy	Keyed	Shielded	Metal	Gold	Copper Alloy	Electroless Nickel	Solder	125 VAC
Switchcraft Inc. TS2P2M20-BPE	Panel Mount, Through Hole	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	2	IP66, IP67, IP68	Liquid Crystal Polymer (LCP)	Bulkhead - Front Side Nut	135 °C	-40 °C	Male Pins, Receptacle	Silver	Copper Alloy	Keyed	Shielded	Metal	Gold	Copper Alloy	Electroless Nickel	Solder	125 VAC
Switchcraft Inc. TS2P2M20		Agriculture, Audio, General, Medical, Testing Equipment & Measurement	2	IP66, IP67, IP68	Liquid Crystal Polymer (LCP)	Bulkhead - Rear Side Nut	135 °C	-40 °C	Male Pins, Receptacle	Silver	Copper Alloy	Keyed	Shielded	Metal	Gold	Copper Alloy	Electroless Nickel	Crimp, Solder Cup	125 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

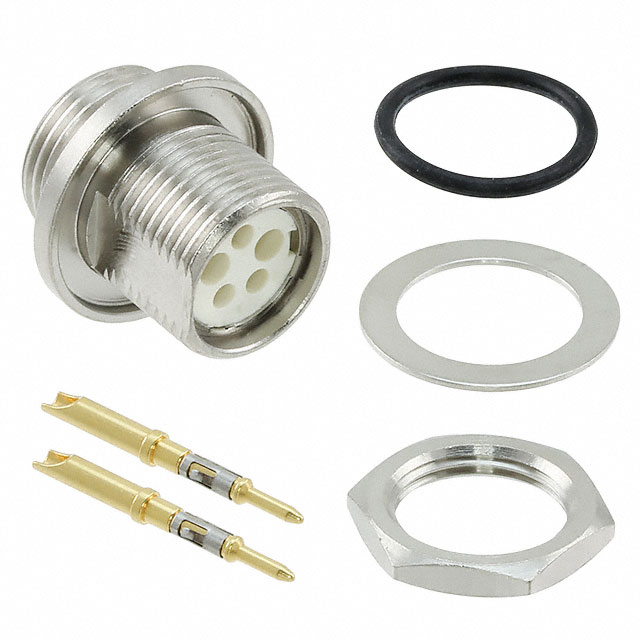

2 Position Circular Connector Receptacle, Male Pins Crimp or Solder Cup
