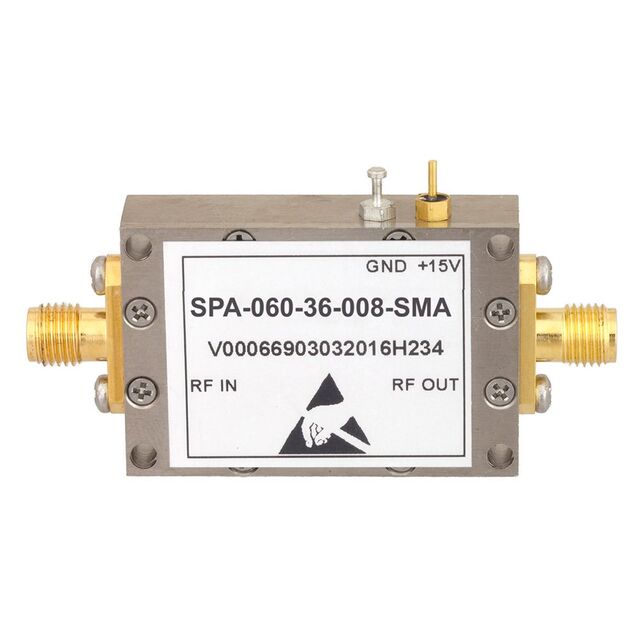

SPA-060-36-008-SMA
ObsoleteFairview Microwave
POWER AMP 60MHZ-6GHZ P1DB SMA
SPA-060-36-008-SMA
ObsoleteFairview Microwave
POWER AMP 60MHZ-6GHZ P1DB SMA
Description
General part information
SPA-060-36-008-SMA
RF Amplifier IC General Purpose 60MHz ~ 6GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SPA-060-36-008-SMA |
|---|---|
| Current - Supply | 530 mA |
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 60 MHz |
| Gain | 39 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 5 dB |
| P1dB | 29 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 18 V |
| Voltage - Supply (Minimum) | 13 V |
