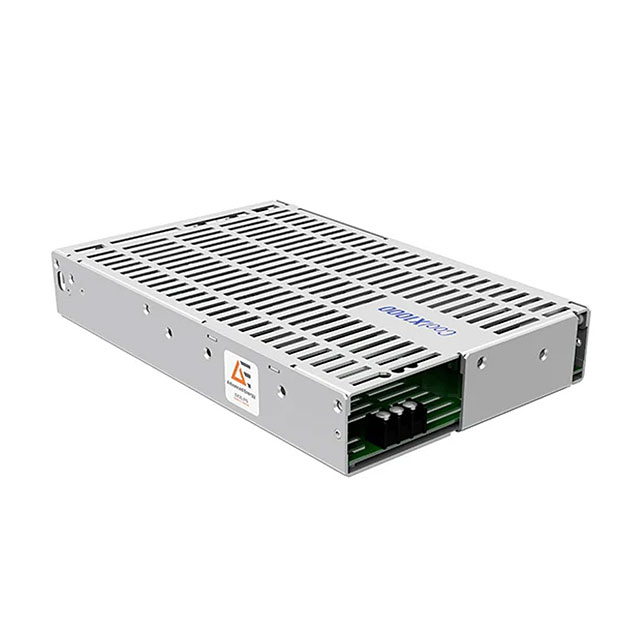

CX10S-HBHHHB-P-A-DK00000
ActiveEXCELSYS / Advanced Energy
AC/DC CNVT 12V 5V 24V 5V 12V 24V
Deep-Dive with AI
Search across all available documentation for this part.
CX10S-HBHHHB-P-A-DK00000
ActiveEXCELSYS / Advanced Energy
AC/DC CNVT 12V 5V 24V 5V 12V 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CX10S-HBHHHB-P-A-DK00000 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | IEC, UL, EN, CSA |
| Current - Output 1 | 6 A |
| Current - Output 2 | 3 A |
| Current - Output 3 | 15 A |
| Current - Output 4 | 6 A |
| Current - Output 5 | 3 A |
| Current - Output 6 | 6 A |
| Efficiency | 93 % |
| Features | Standby Output, Remote Sense, Adjustable Output, Universal Input, PMBus™ |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 760 W |
| Size / Dimension [x] | 10.22 " |
| Size / Dimension [x] | 259.5 mm |
| Size / Dimension [y] | 6.46 " |
| Size / Dimension [y] | 164 mm |
| Size / Dimension [z] | 1.6 " |
| Size / Dimension [z] | 40.6 mm |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 24 V |
| Voltage - Output 3 | 12 V |
| Voltage - Output 4 | 5 V |
| Voltage - Output 5 [custom] | 24 V |
| Voltage - Output 6 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CX10S-HBHHHB-P-A-DK00000
Enclosed AC DC Converters 10 Output 5V 24V 12V 5V 85 ~ 264 VAC Input
