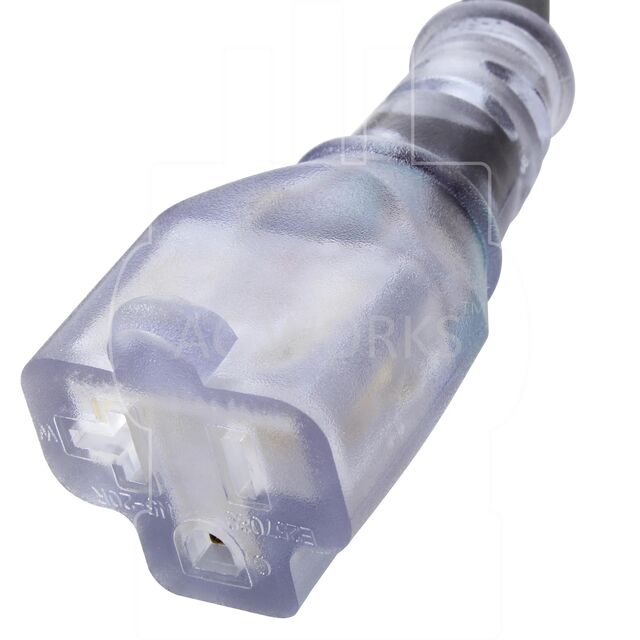

15/20AEX-050
ActiveAC Connectors
50FT NEMA 5-15/20 EXTENSION CORD
15/20AEX-050
ActiveAC Connectors
50FT NEMA 5-15/20 EXTENSION CORD
Description
General part information
15/20AEX-050
50.00' (15.24m) Power Cord Black NEMA 5-15P To NEMA 5-15/20R SJTW
Technical Specifications
Parameters and characteristics for this part
| Specification | 15/20AEX-050 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | NEMA 5-15, 20R |
| Approval Agency Marking | cULus |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJTW |
| Current Rating | 20 A |
| Features | Outdoor Use, Industrial Environments |
| Length | 50 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Shielding | Unshielded |
| Style | Female Plug, Male Plug |
| Voltage Rating | 125 V |
| Wire Gauge | 12 AWG |
