88327-L25

Active

Cinch Connectivity Solutions Semflex

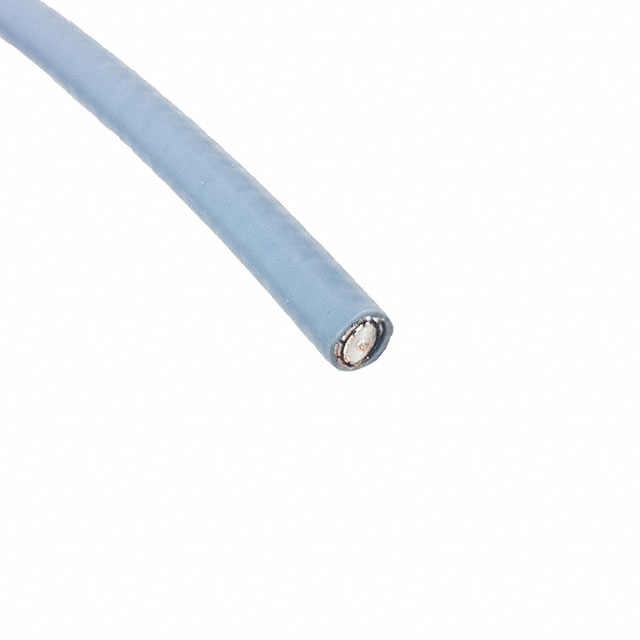

CABLE HP 160U 25 FT LENGTH

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Semflex

CABLE HP 160U 25 FT LENGTH

Technical Specifications

Parameters and characteristics for this part

Specification	88327-L25

Cable Group	HP190S
Cable Type	Coaxial
Conductor Material	Copper, Silver Coated
Dielectric Diameter [diameter]	0.097 in
Dielectric Diameter [diameter]	2.46 mm
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Blue
Length	25 ft
Length	7.62 m
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-65 ░C
Shield Material	Copper, Silver Coated
Shield Type	Foil, Braid
VoP, Velocity of Propagation	78

CABLE HP 160U 25 FT LENGTH

Part	Shield Material	Conductor Material	Shield Type	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	VoP, Velocity of Propagation	Impedance	Dielectric Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Jacket (Insulation) Material	Cable Group	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Cinch Connectivity Solutions Semflex 88327-L25	Copper, Silver Coated	Copper, Silver Coated	Braid, Foil	Blue	-65 ░C	75 ░C	78	50 Ohms	Polytetrafluoroethylene (PTFE)	0.097 in	2.46 mm	Coaxial	Polyurethane (PU)	HP190S	25 ft	7.62 m	4.27 mm	0.168 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable HP190S 25.0' (7.62m) 50 Ohms
