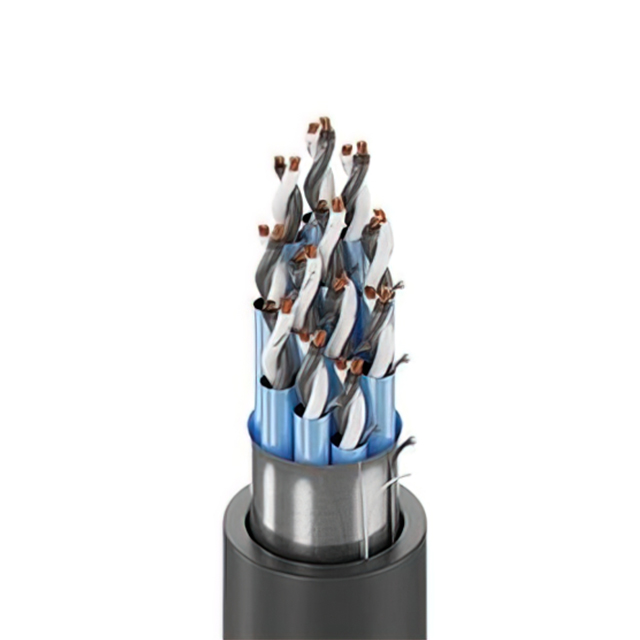

1042A 0102500

Active

Belden Inc.

MULTI-PAIR 24COND 16AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 24COND 16AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1042A 0102500

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	24
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	23.04 mm
Jacket (Insulation) Diameter [diameter]	0.907 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.084 in
Jacket (Insulation) Thickness	2.134 mm
Jacket Color	Black
Length	2500 ft
Length	762 m
Number of Conductors	24
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	16 AWG

MULTI-PAIR 24COND 16AWG

Part	Length	Length	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Shield Coverage	Shield Type	Wire Gauge	Conductor Insulation	Jacket Color	Number of Conductors	Features
Belden Inc. 1042A 0102500	2500 ft	762 m	Multi-Pair	23.04 mm	0.907 in	Aluminum	0.084 in	2.134 mm	Copper, Bare	7	24	Poly-Vinyl Chloride (PVC)	100 %	Foil	16 AWG	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	Black	24	Drain Wire, Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2500	$ 12.11

General part information

24 (12 Pair Twisted) Conductor Multi-Pair Cable Black 16 AWG Foil 2500' (762.0m)
