3413.0218.24

Active

SCHURTER Inc.

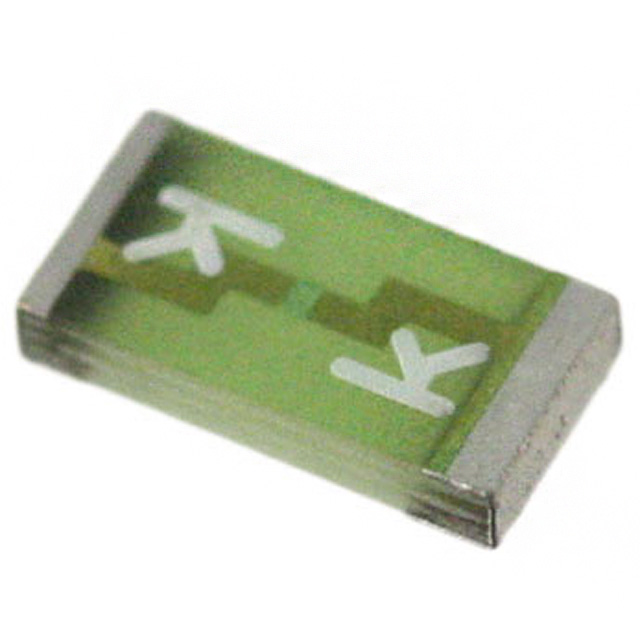

FUSE BRD MT 1.6A 32VAC 63VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MT 1.6A 32VAC 63VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3413.0218.24	3413.0218 Series

Approval Agency	cURus, VDE	cURus, VDE
Breaking Capacity @ Rated Voltage	63 A	63 A
Current Rating (Amps)	1.6 A	1.6 A
DC Cold Resistance	0.0505 Ohms	0.0505 Ohms
Fuse Type	Board Mount	Board Mount
Melting I˛t	0.33	0.33
Melting I²t	-	0.33
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Size / Dimension [z]	0.6 mm	0.6 mm
Size / Dimension [z]	0.024 "	0.024 "
Voltage Rating - AC	32 V	32 V
Voltage Rating - DC	63 VDC	63 VDC

FUSE BRD MT 1.6A 32VAC 63VDC

Part	Approval Agency	Fuse Type	Package / Case	Response Time	Voltage Rating - AC	DC Cold Resistance	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Breaking Capacity @ Rated Voltage	Mounting Type	Melting I˛t	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current Rating (Amps)	Melting I²t
SCHURTER Inc. 3413.0218.24	cURus, VDE	Board Mount	1206 (3216 Metric)	Fast Blow	32 V	0.0505 Ohms	63 VDC	90 °C	-55 °C	63 A	Surface Mount	0.33	0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	1.6 A
SCHURTER Inc. 3413.0218.22	cURus, VDE	Board Mount	1206 (3216 Metric)	Fast Blow	32 V	0.0505 Ohms	63 VDC	90 °C	-55 °C	63 A	Surface Mount		0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	1.6 A	0.33

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.83
	Digi-Reel®	1	$ 0.83
	Tape & Reel (TR)	5000	$ 0.31

General part information

1.6 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
