Description
General part information

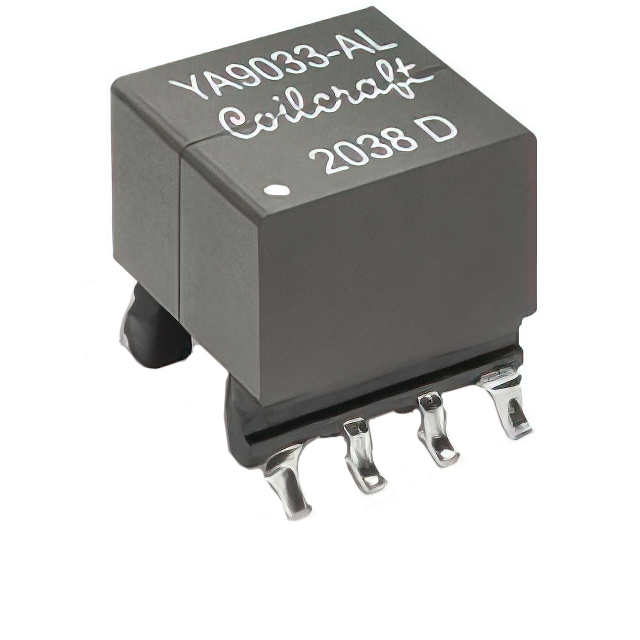

YA9033-ALD
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 300kHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | YA9033-ALD |
|---|---|
| Applications | Flyback Converters |
| Chipset Manufacturer | Texas Instruments |
| Footprint Length | 0.402 in |
| Footprint Width | 0.366 in |
| Frequency | 300 kHz |
| Height - Seated (Max) | 0.417 in |
| Inductance | 32 µH |
| Intended Chipset | LM25180, LM5180 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Type | For DC/DC Converters |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary (Max) | 65 V |
| Voltage - Primary (Min) | 4 V |
