ZZ-C6T-15-28LSZH-F

Active

Pactech

PREMIUM CAT6 28AWG UTP 15 DBL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZZ-C6T-15-28LSZH-F

Active

Pactech

PREMIUM CAT6 28AWG UTP 15 DBL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZZ-C6T-15-28LSZH-F	ZZ-C6T Series

Cable Type	Round LSZH Cable	Round LSZH Cable
Color	Blue	Blue
Connector Type	Plug to Plug	Plug to Plug
Features	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed
Features [diameter]	3.8 mm	3.8 mm
Features [radius]	15.2 mm	15.2 mm
Length	-	0.5 - 90 ft
Length	-	1.37 - 1070 m
Length [x]	15 ft	2 - 30 ft
Length [x]	4.57 m	1.22 - 762 m
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Shielding	Unshielded	Unshielded
Style	LSZH Environmental, Cat6	LSZH Environmental, Cat6

ZZ-C6T Series

PREMIUM CAT6 28AWG UTP 10 DBL

Part	Connector Type	Style	Mounting Type	Length	Length	Cable Type	Shielding	Color	Number of Positions/Contacts	Features	Features [diameter]	Features [radius]	Length [x]	Length [x]
Pactech ZZ-C6T-10-28LSZH-F	Plug to Plug	Cat6, LSZH Environmental	Free Hanging (In-Line)	10 ft	3.05 m	Round LSZH Cable	Unshielded	Blue	8p8c (RJ45, Ethernet)	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	3.8 mm	15.2 mm
Pactech ZZ-C6T-05-28LSZH-F	Plug to Plug	Cat6, LSZH Environmental	Free Hanging (In-Line)	5 '	1.52 m	Round LSZH Cable	Unshielded	Blue	8p8c (RJ45, Ethernet)	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	3.8 mm	15.2 mm
Pactech ZZ-C6T-05.5-28LSZH-F	Plug to Plug	Cat6, LSZH Environmental	Free Hanging (In-Line)	5.5 ft	1.68 m	Round LSZH Cable	Unshielded	Blue	8p8c (RJ45, Ethernet)	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	3.8 mm	15.2 mm
Pactech ZZ-C6T-08-28LSZH-F	Plug to Plug	Cat6, LSZH Environmental	Free Hanging (In-Line)			Round LSZH Cable	Unshielded	Blue	8p8c (RJ45, Ethernet)	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	3.8 mm	15.2 mm	2.44 m	8 ft
Pactech ZZ-C6T-07.5-28LSZH-F	Plug to Plug	Cat6, LSZH Environmental	Free Hanging (In-Line)	90 in	2.28 m	Round LSZH Cable	Unshielded	Blue	8p8c (RJ45, Ethernet)	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	3.8 mm	15.2 mm
Pactech ZZ-C6T-06-28LSZH-F	Plug to Plug	Cat6, LSZH Environmental	Free Hanging (In-Line)	6 ft	1.83 m	Round LSZH Cable	Unshielded	Blue	8p8c (RJ45, Ethernet)	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	3.8 mm	15.2 mm
Pactech ZZ-C6T-09.5-28LSZH-F	Plug to Plug	Cat6, LSZH Environmental	Free Hanging (In-Line)	9.5 ft	2.89 m	Round LSZH Cable	Unshielded	Blue	8p8c (RJ45, Ethernet)	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	3.8 mm	15.2 mm
Pactech ZZ-C6T-04.5-28LSZH-F	Plug to Plug	Cat6, LSZH Environmental	Free Hanging (In-Line)		1.37 m	Round LSZH Cable	Unshielded	Blue	8p8c (RJ45, Ethernet)	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	3.8 mm	15.2 mm		4.5 ft
Pactech ZZ-C6T-03-28LSZH-F	Plug to Plug	Cat6, LSZH Environmental	Free Hanging (In-Line)		91.44 cm	Round LSZH Cable	Unshielded	Blue	8p8c (RJ45, Ethernet)	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	3.8 mm	15.2 mm		3 ft
Pactech ZZ-C6T-03.5-28LSZH-F	Plug to Plug	Cat6, LSZH Environmental	Free Hanging (In-Line)	42 "	1070 mm	Round LSZH Cable	Unshielded	Blue	8p8c (RJ45, Ethernet)	28AWG, Serial Barcode, TIA Cat6 Channel (+ALL) Test Passed	3.8 mm	15.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.56
		10	$ 18.97
		20	$ 18.58
		40	$ 18.00
		60	$ 17.60
		80	$ 17.21
		100	$ 16.63

Description

General part information

ZZ-C6T Series

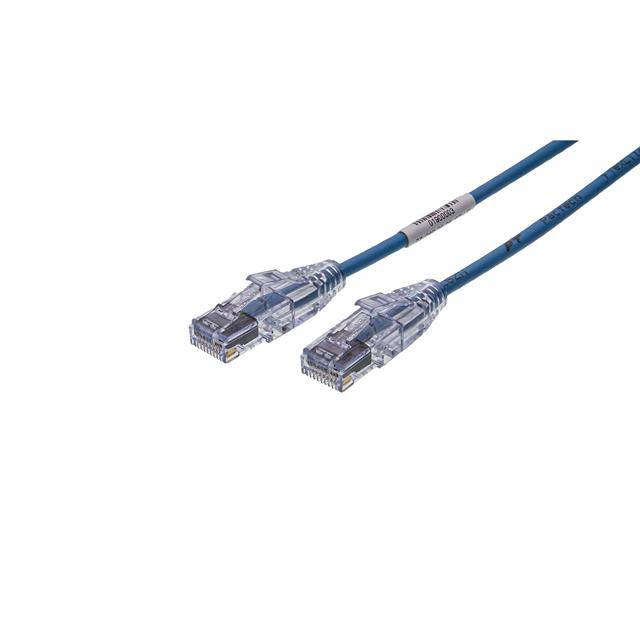

Modular Cable Plug to Plug 8p8c (RJ45, Ethernet) 15.00' (4.57m) Unshielded
