PE4532
ActivePasternack

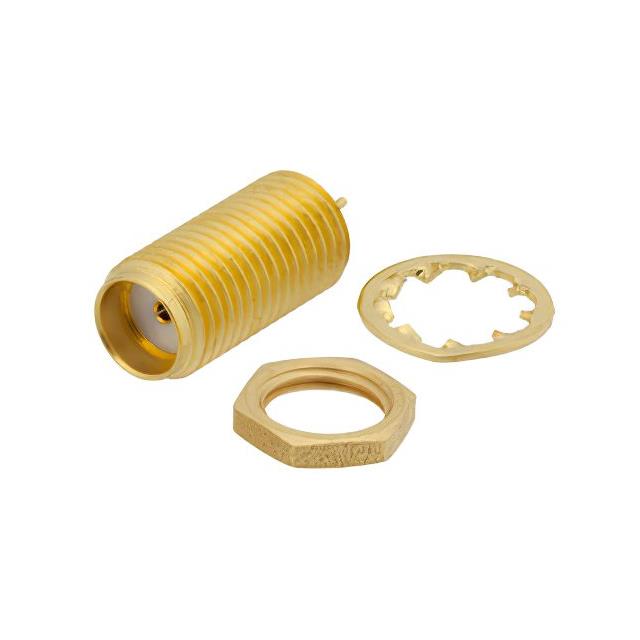

SMA FEMALE BULKHEAD MOUNT HERMET
PE4532
ActivePasternack
SMA FEMALE BULKHEAD MOUNT HERMET
Description
General part information
PE4532
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4532 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
