Description
General part information

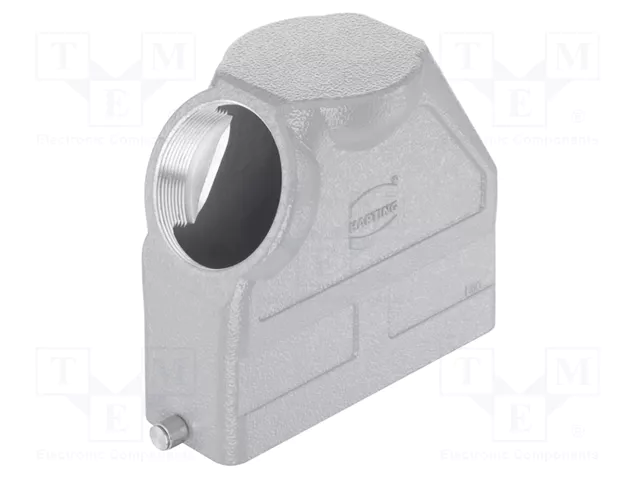

19300240549
24B HOOD SIDE ENTRY, SINGLE LEVER, HIGH CONSTRUCTION, M50
Technical Specifications
Parameters and characteristics for this part
| Specification | 19300240549 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP65, IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | 24B |
| Style | Side Entry |
| Thread Size | M50 |
