966256-6702-AR

Obsolete

3M (TC)

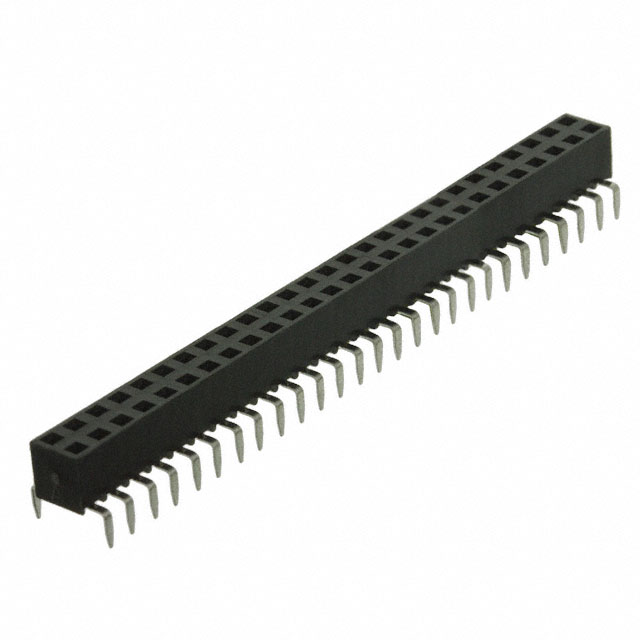

CONN RCPT 56POS 0.1 GOLD PCB

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN RCPT 56POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	966256-6702-AR

Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.02 Ám
Contact Finish Thickness - Post	40 Áin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	1000 VDC

Part	Contact Finish Thickness - Mating	Contact Material	Number of Positions	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Shape	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Mounting Type	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Type	Connector Type	Material Flammability Rating	Fastening Type	Insulation Material
3M (TC) 966256-6702-AR	Flash	Copper Alloy	56	Black	0.118 in	3 mm	Square	2 A	1000 VDC	Gold	0.197 in	5 mm	Tin	Through Hole	2	1.02 Ám	40 Áin	All	0.1 in	2.54 mm	2.54 mm	0.1 in	-25 °C	105 ░C	Solder	Female Socket	Receptacle Bottom or Top Entry	UL94 V-0	Push-Pull	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

56 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold
