1217006-1
ActiveTE Connectivity AMP Connectors

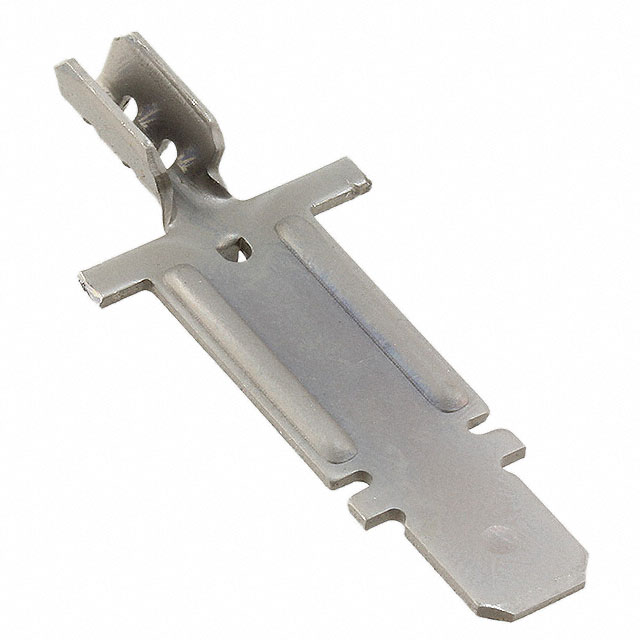

CONN QC TAB 15-22AWG 0.250 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217006-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 15-22AWG 0.250 CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217006-1 |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Steel |
| Gender | Male |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 7.8 mm |
| Tab Length | 0.307 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 15 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.22 | |
| 10 | $ 0.19 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| 2500 | $ 0.12 | |||
| Tape & Reel (TR) | 90000 | $ 0.08 | ||
1217006 Series
CONN QC TAB 15-22AWG 0.250 CRIMP
| Part | Contact Finish | Tab Length | Tab Length | Terminal Type | Tab Width | Tab Width | Gender | Termination | Insulation | Contact Material | Mounting Type | Tab Thickness | Tab Thickness | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217006-1 | Nickel | 7.8 mm | 0.307 in | Standard | 6.35 mm | 0.25 in | Male | Crimp | Non-Insulated | Steel | Free Hanging (In-Line) | 0.032 in | 0.81 mm | 15 AWG | 22 AWG |
Description
General part information
1217006 Series
0.250" (6.35mm) Quick Connect Male 15-22 AWG Crimp Connector Non-Insulated
