180-001-170-001
ObsoleteNorComp Inc.
CONN D-SUB PIN 22-26AWG CRIMP
180-001-170-001
ObsoleteNorComp Inc.
CONN D-SUB PIN 22-26AWG CRIMP
Description
General part information
180-001-170-001

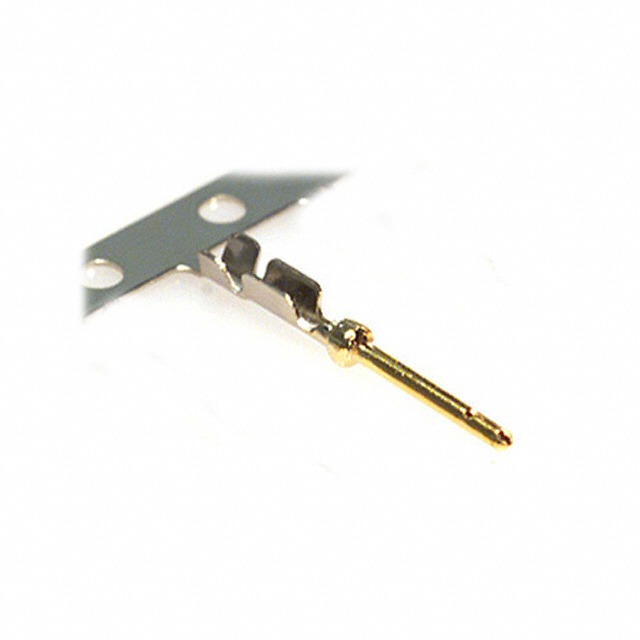

D-Sub Contact Male Pin Gold 22-26 AWG Crimp Machined
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-001-170-001 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Form | Machined |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Features | High Density (HD), Insulation Support |
| Type | Signal |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
