1819121
ActivePhoenix Contact

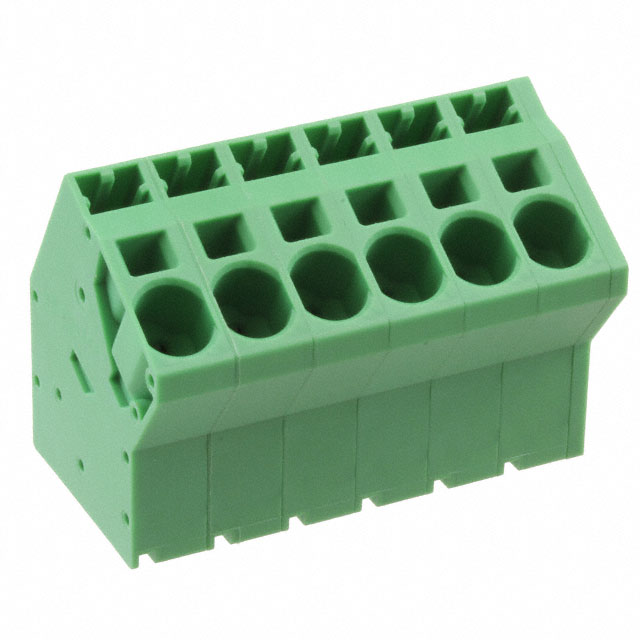

CONN TERMINAL BLOCK 6 POS 7.5MM SOLDER THRU-HOLE 41A
1819121
ActivePhoenix Contact
CONN TERMINAL BLOCK 6 POS 7.5MM SOLDER THRU-HOLE 41A
Description
General part information
1819121
6 Position Wire to Board Terminal Block 30° (150°) Angle with Board 0.295" (7.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1819121 |
|---|---|
| Color | Green |
| Contact Material - Plating | Tin Plated |
| Current | 33 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 30 ° |
| Mating Orientation (Angle) (Alternate) | 150 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.295 in |
| Positions Per Level | 6 |
| Voltage | 600 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 8 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
