SSF-LXH4RAGD

Active

Lumex Opto/Components Inc.

LED CBI 3MM GRN RA PCMNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH4RAGD

Active

Lumex Opto/Components Inc.

LED CBI 3MM GRN RA PCMNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.10
		10	$ 0.70
		200	$ 0.52
		1000	$ 0.39
		5000	$ 0.36
		10000	$ 0.35

Description

General part information

SSF-LXH4 Series

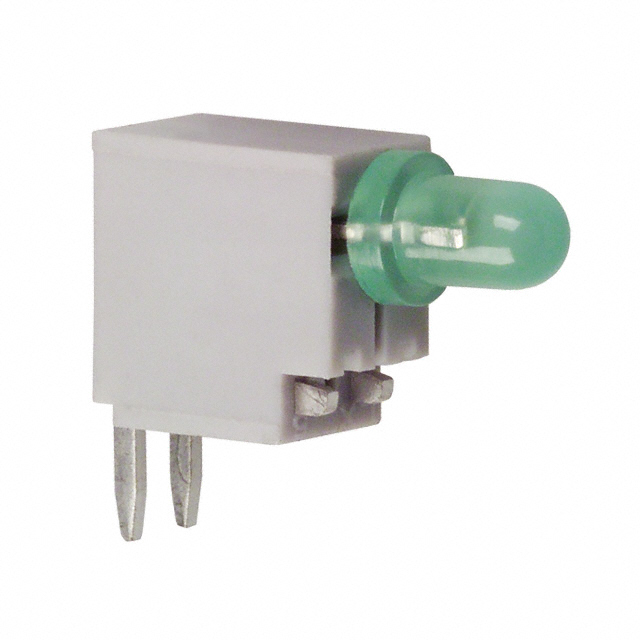

LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH4RAGD	SSF-LXH4 Series

Color	Green	Green, Red, Yellow, Blue
Configuration	Single	Single
Current	-	6 - 12 mA
Lens Size	3 mm	3 - 5 mm
Lens Size	T-1	T-1 3/4, T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	30 mcd	6 - 80 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	2.1 V	1.7 - 5 V
Wavelength - Peak	565 nm	430 - 660 nm

SSF-LXH4 Series

LED CBI 5MM GRN RA PC MNT

Part	Voltage Rating	Configuration	Current	Lens Style	Color	Wavelength - Peak	Millicandela Rating	Lens Size	Lens Size	Viewing Angle	Lens Type	Mounting Type
Lumex Opto/Components Inc. SSF-LXH4RA5GD-5V	5 V	Single	12 mA	Round with Domed Top	Green	565 nm	15 mcd	T-1 3/4	5 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5SRD	1.7 V	Single		Round with Domed Top	Red	660 nm	80 mcd	T-1 3/4	5 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5YD	2.1 V	Single		Round with Domed Top	Yellow	585 nm	30 mcd	T-1 3/4	5 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5LID	2.1 V	Single		Round with Domed Top	Red	635 nm	40 mcd	T-1 3/4	5 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RASBD	4.5 V	Single		Round with Domed Top	Blue	430 nm	25 mcd	T-1	3 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RAGD	2.1 V	Single		Round with Domed Top	Green	565 nm	30 mcd	T-1	3 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RAYD	2.1 V	Single		Round with Domed Top	Yellow	585 nm	30 mcd	T-1	3 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RABID		Single	6 mA	Round with Domed Top	Red	635 nm	6 mcd	T-1	3 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RAID	2.1 V	Single		Round with Domed Top	Red	635 nm	40 mcd	T-1	3 mm	60 °	Diffused, Tinted	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5BID		Single		Round with Domed Top	Red			T-1 3/4	5 mm		Diffused, Tinted	Through Hole, Right Angle
