MXL7704-A-EVB

Obsolete

MaxLinear, Inc.

EVAL BOARD FOR MXL7704

Search across all available documentation for this part.

Obsolete

MaxLinear, Inc.

EVAL BOARD FOR MXL7704

Technical Specifications

Parameters and characteristics commom to parts in this series

IC REG DSP/FPGA MICRO 5OUT 32QFN

Part	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Supplier Device Package	Applications	Voltage - Output	Current - Output	Main Purpose	Outputs and Type	Frequency - Switching	Regulator Topology	Contents	Utilized IC / Part
MaxLinear, Inc. MXL7704-AQB-T	3.3 V	-40 °C	125 ¯C	Surface Mount	32-VFQFN Exposed Pad	5.5 V	4 V	5	32-QFN (5x5)	DSPs, FPGA, Microprocessor
MaxLinear, Inc. MXL7704-RQB-R		-40 °C	125 ¯C	Surface Mount	32-VFQFN Exposed Pad	5.5 V	4 V	4	32-QFN (5x5)	DSPs, FPGA, Microprocessor	Multiple
MaxLinear, Inc. MXL7704-XQB-T	3.3 V	-40 °C	125 ¯C	Surface Mount	32-VFQFN Exposed Pad	5.5 V	4 V	5	32-QFN (5x5)	DSPs, FPGA, Microprocessor
MaxLinear, Inc. MXL7704-AQB-R	3.3 V	-40 °C	125 ¯C	Surface Mount	32-VFQFN Exposed Pad	5.5 V	4 V	5	32-QFN (5x5)	DSPs, FPGA, Microprocessor
MaxLinear, Inc. MXL7704-BQB-T		-40 °C	125 ¯C	Surface Mount	32-VFQFN Exposed Pad	5.5 V	4 V	5	32-QFN (5x5)	DSPs, FPGA, Microprocessor	Multiple
MaxLinear, Inc. MXL7704-PQB-R		-40 °C	125 ¯C	Surface Mount	32-VFQFN Exposed Pad	5.5 V	4 V	4	32-QFN (5x5)	DSPs, FPGA, Microprocessor	Multiple
MaxLinear, Inc. MXL7704-A-EVB	1.2 V, 1.35 V, 1.8 V, 3.3 V					5.5 V	4 V					1.5 A, 2.5 A, 4 A, 100 mA	DC/DC, Step Down with LDO	5	1.5 MHz	Buck	Board(s)	MxL7704

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

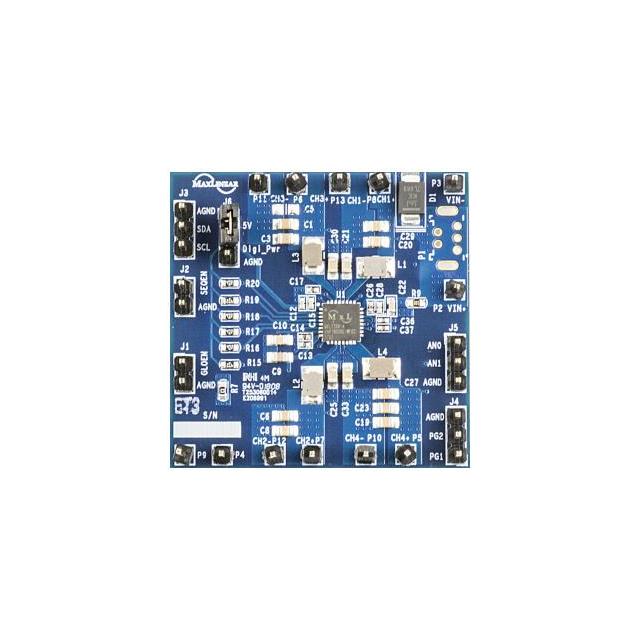

MxL7704 - 5 Non-Isolated Outputs DC/DC, Step Down with LDO Evaluation Board

Technical documentation and resources

No documents available
