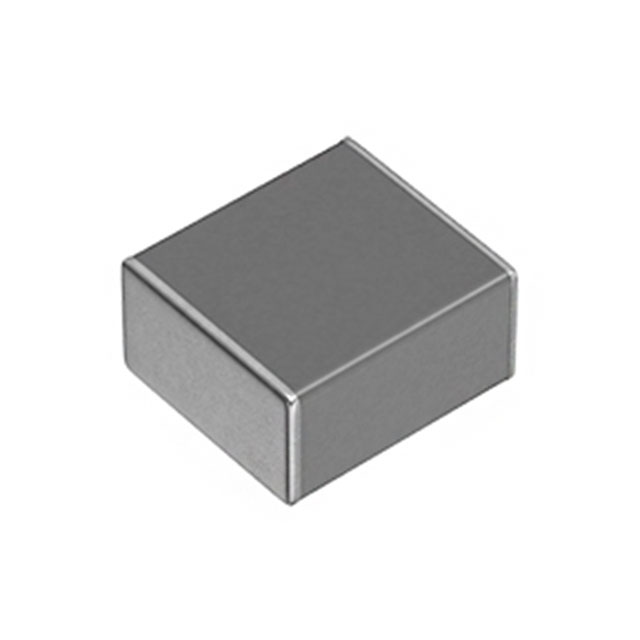

C5750C0G2A154J230KE
ActiveTDK Corporation
CAP CER 0.15UF 100V C0G/NP0 2220
C5750C0G2A154J230KE
ActiveTDK Corporation
CAP CER 0.15UF 100V C0G/NP0 2220
Description
General part information
C5750C0G2A154J230KE
0.15 µF ±5% 100V Ceramic Capacitor C0G, NP0 2220 (5750 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C5750C0G2A154J230KE |
|---|---|
| Applications | Boardflex Sensitive |
| Capacitance | 0.15 µF |
| Features | Soft Termination |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2220 (5750 Metric) |
| Size / Dimension Length | 0.224 in |
| Size / Dimension Width | 0.197 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.102 in |
| Tolerance | 5 % |
| Voltage - Rated | 100 VAC/DC |
