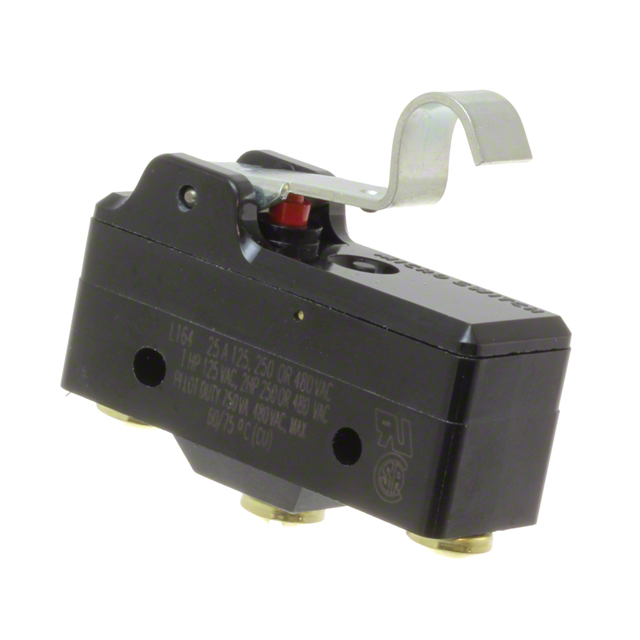

BE-2RV5-A2
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 25A 125V
BE-2RV5-A2
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 25A 125V
Description
General part information
BE-2RV5-A2
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BE-2RV5-A2 |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Current Rating | 25 A |
| Differential Travel (Linear) | 0.045 in |
| Mechanical Life (Cycles) | 20000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 170 gf |
| Operating Position (Length) | 1.172 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Overtravel (Linear) | 0.03 in |
| Pretravel (Length) | 0.25 in |
| Release Force | 43 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
