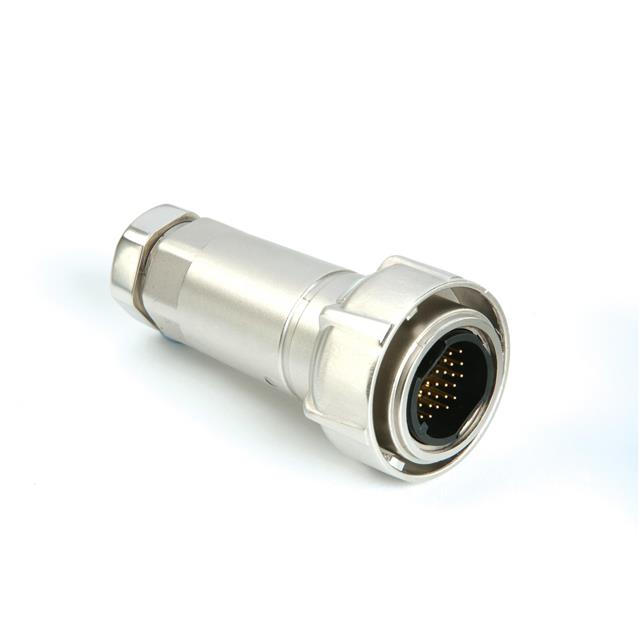

Specification	PXM7010/32S/CR/0709/SN

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Solder Cup, Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP66
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	32
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Position Types	Power
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shielding	Shielded
Type	For Female Sockets

PXM7010 Series

Part	Fastening Type	Housing Color	Shell Finish	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Primary Material	Contact Type	Features	Orientation	Mounting Type	Connector Type	Number of Positions	Position Types	Type
BULGIN LIMITED PXM7011/10S/CR/0911/SN	Bayonet Lock	Silver	Nickel	Shielded	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Zinc Alloy	Metal	Crimp Solder Cup	Backshell	Keyed	Free Hanging (In-Line)	Receptacle Housing	10	Power	For Female Sockets
