Cable Assemblies
RG400-4.3/10M-SF (QTY:80m)
ActiveMcGill Microwave Systems
RG400 ASSY 4.3/10M-SMA MALE FEMA
Cable Assemblies
RG400-4.3/10M-SF (QTY:80m)
ActiveMcGill Microwave Systems
RG400 ASSY 4.3/10M-SMA MALE FEMA
Technical Specifications
Parameters and characteristics for this part
| Specification | RG400-4.3/10M-SF (QTY:80m) |
|---|---|
| 1st Connector | 4.3/10 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.3 mm |
| 1st Connector Dimension (2) | 10 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.3, 4.3 mm |
| 1st Connector Size (Dimension 2) | 10, 10 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 400 |
| Length | 3149.6 in |
| Style | 4.3/10 to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 871.31 | <6d |
| 10 | $ 799.72 | |||
| 25 | $ 731.17 | |||
CAD
3D models and CAD resources for this part
Description
General part information
RG400-4.3/10M-SF (QTY:80m)

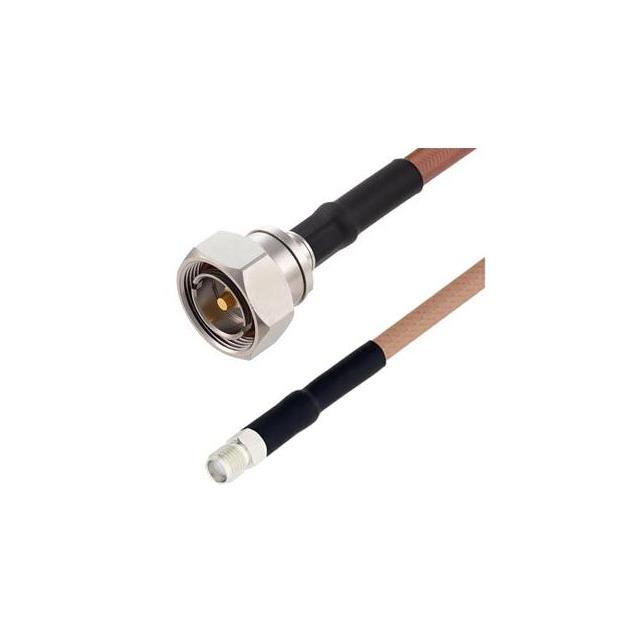

Cable Assembly Coaxial 4.3/10 to SMA RG-400 3149.6" (80.0m) 262.5'
Documents
Technical documentation and resources
