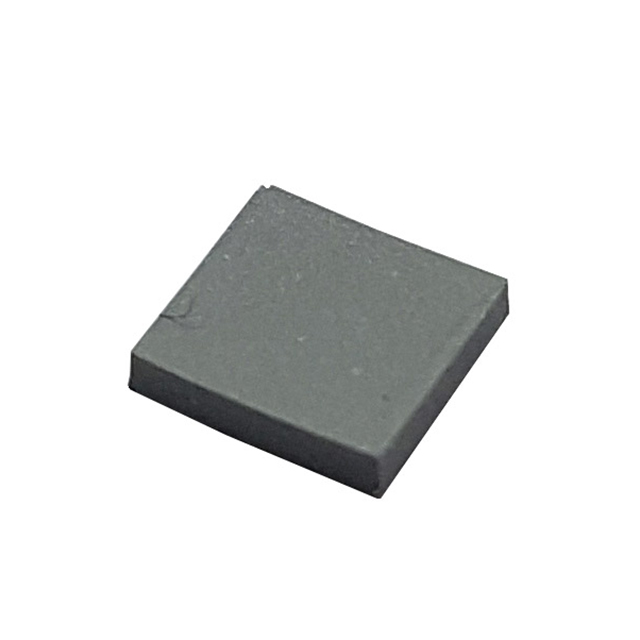

Specification	TG-A2200-5-5-1.0

Adhesive	Tacky - One Side
Color	Gray
Material	Silicone
Outline Length	5 mm
Outline Width	5 mm
Shape	Square
Shelf Life	24 Months
Thermal Conductivity	2.2 W/m-K
Thickness	0.0394 in
Type	Gap Filler Pad, Sheet
Usage	Multi

TG-A2200 Series

Part	Shelf Life	Material	Outline Width	Outline Length	Usage	Color	Thermal Conductivity	Thickness	Shape	Adhesive	Type
t-Global Technology TG-A2200-20-10-2.0	24 Months	Silicone	10 mm	20 mm	Multi	Gray	2.2 W/m-K	0.079 in	Rectangular	Tacky - One Side	Gap Filler Pad Sheet
t-Global Technology TG-A2200-45-45-1.5	24 Months	Silicone	45 mm	45 mm	Multi	Gray	2.2 W/m-K	0.0591 in	Square	Tacky - One Side	Gap Filler Pad Sheet
t-Global Technology TG-A2200-19.50-12.70-1.0	24 Months	Silicone	12.7 mm	19.5 mm	Multi	Gray	2.2 W/m-K	0.0394 in	Rectangular	Tacky - One Side	Gap Filler Pad Sheet
t-Global Technology TG-A2200-40-40-2.0	24 Months	Silicone	40 mm	40 mm	Multi	Gray	2.2 W/m-K	0.079 in	Square	Tacky - One Side	Gap Filler Pad Sheet
t-Global Technology TG-A2200-20-10-1.0	24 Months	Silicone	10 mm	20 mm	Multi	Gray	2.2 W/m-K	0.0394 in	Rectangular	Tacky - One Side	Gap Filler Pad Sheet
t-Global Technology TG-A2200-20-20-1.5	24 Months	Silicone	20 mm	20 mm	Multi	Gray	2.2 W/m-K	0.0591 in	Square	Tacky - One Side	Gap Filler Pad Sheet
t-Global Technology TG-A2200-19.50-12.70-0.5	24 Months	Silicone	12.7 mm	19.5 mm	Multi	Gray	2.2 W/m-K	0.0197 in	Rectangular	Tacky - One Side	Gap Filler Pad Sheet
t-Global Technology TG-A2200-24-21.01-2.0	24 Months	Silicone	21.01 mm	24 mm	Multi	Gray	2.2 W/m-K	0.079 in	Rectangular	Tacky - One Side	Gap Filler Pad Sheet
t-Global Technology TG-A2200-300-150-2.0	24 Months	Silicone	150 mm	300 mm	Multi	Gray	2.2 W/m-K	0.079 in	Rectangular	Tacky - One Side	Gap Filler Pad Sheet
t-Global Technology TG-A2200-300-150-1.0	24 Months	Silicone	150 mm	300 mm	Multi	Gray	2.2 W/m-K	0.0394 in	Rectangular	Tacky - One Side	Gap Filler Pad Sheet
