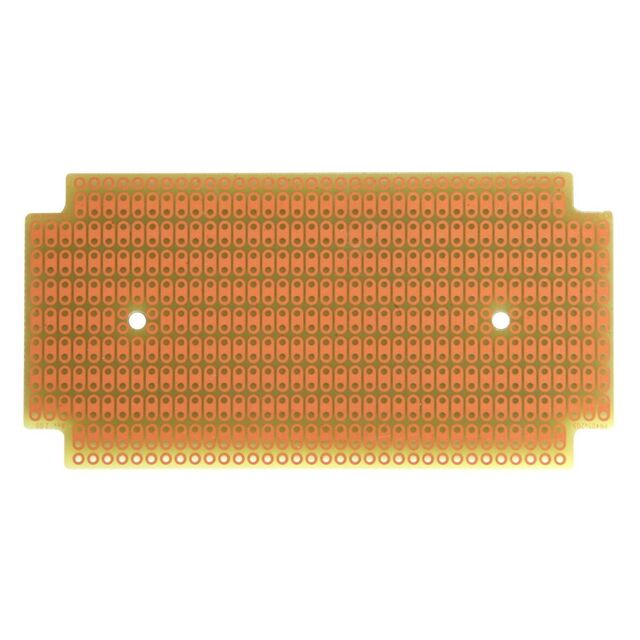

PR1590B
ActiveBusBoard Prototype Systems
FITS HAMMOND 1590B ALUM BOX
PR1590B
ActiveBusBoard Prototype Systems
FITS HAMMOND 1590B ALUM BOX
Description
General part information
PR1590B
Breadboard, General Purpose Plated Through Hole (PTH) 2 Hole Pad (Single Side) 0.1" (2.54mm) Grid
Technical Specifications
Parameters and characteristics for this part
| Specification | PR1590B |
|---|---|
| Board Thickness | 0.063 in |
| Circuit Pattern | Hole Pad (Single Side) |
| Circuit Pattern Hole Count | 2 |
| Hole Diameter | 0.042 in |
| Material | FR4 Epoxy Glass |
| Pitch | 0.1 in |
| Pitch (Grid) | 0.1 in |
| Plating | Non-Plated Through Hole (NPTH), Plated Through Hole (PTH) |
| Proto Board Type | General Purpose, Breadboard |
| Size / Dimension Length | 4.05 in |
| Size / Dimension Width | 2.05 in |
